LSV Relay - pneu. - 4757110940
LSV Relay - pneu. - 4757110940
LSV Relay - pneu. - 4757110940
LSV Relay - pneu. - 4757110940
LSV Relay - pneu. - 4757110940
LSV Relay - pneu. - 4757110940

LSV Relay – pneu.

€454,80

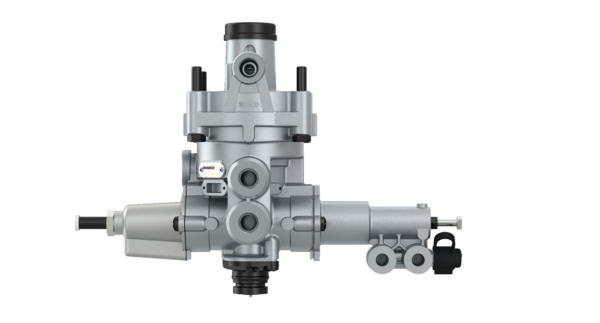

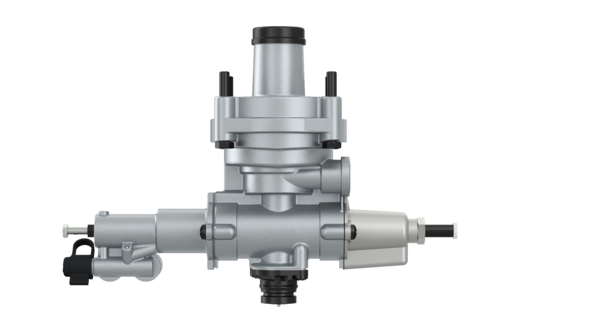

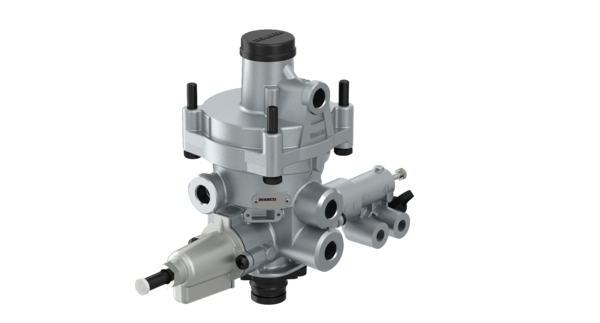

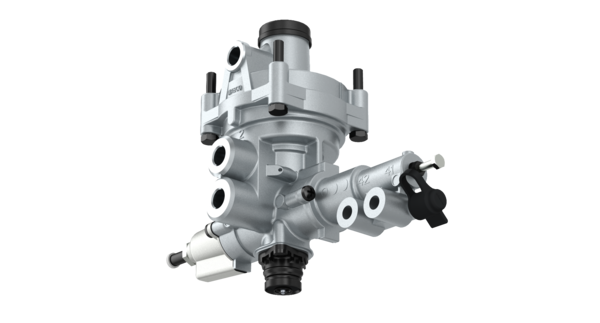

LSV Relay – pneu. – WABCO Original – Part No: 4757110940

Ask about this product
SKU: 4757110940 Category:Air Brake Systems Tags:Original Spare PartWABCO Brand: WABCO
  • Description
  • Additional information

Description

LSV Relay – pneu.

Part Number: 4757110940

Technical Specifications

Brand WABCO
Part type Premium original quality
Break point 0.7 bar
Calculated Volume (dm³) 7.744
Control pressure 13.0 bar
Distance between bolts 84×84 mm
Exhaust Snap-on contour JED – 463
Inlet pressure 10.0 bar
Max. operating pressure 13.0 bar
Mounting 4x M8
Port thread 1 M16 x 1.5
Port thread 2 M16 x 1.5
Port thread 4 M16 x 1.5
Product category Device
Range of adjustment 0.5 to 5.0 bar
Regulating ratio 1:8
Technical specification OE specification
Temperature range -40°C to +80°C
Type Pneumatic
Type of operation Dynamic
GTIN 04057875225379
Size (mm x mm x mm) 320 x 220 x 110
UPC 193133314622
Weight (kg) 1.97
Weight (lb) 4.3431

OEM Cross References

Brand Reference No
IVECO 98475929

Additional information

Weight 1,97 kg
Dimensions 320 × 220 × 110 cm
Brand

WABCO

Part type

Premium original quality

Break point

0.7 bar

Calculated Volume (dm³)

7.744

Control pressure

13.0 bar

Distance between bolts

84×84 mm

Exhaust

Snap-on contour JED – 463

Inlet pressure

10.0 bar

Max. operating pressure

13.0 bar

Mounting

4x M8

Port thread 1

M16 x 1.5

Port thread 2

M16 x 1.5

Port thread 4

M16 x 1.5

Product category

Device

Range of adjustment

0.5 to 5.0 bar

Regulating ratio

1:8

Technical specification

OE specification

Temperature range

-40°C to +80°C

Type

Pneumatic

Type of operation

Dynamic

Size (mm x mm x mm)

320 x 220 x 110

UPC

193133314622

Weight (kg)

1.97

Weight (lb)

4.3431

GTIN

04057875225379

OEM References

IVECO: 98475929
