Description

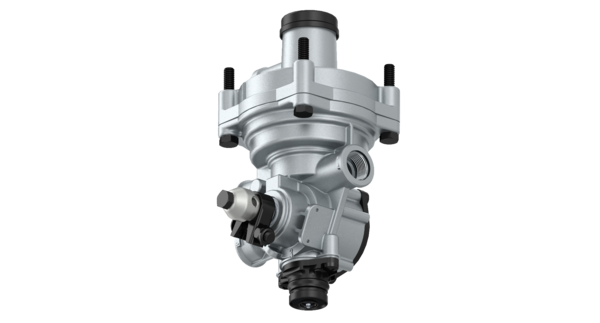

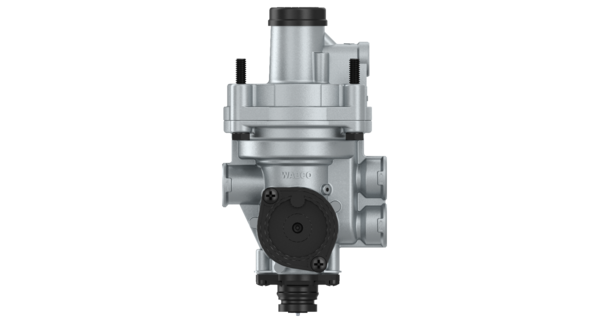

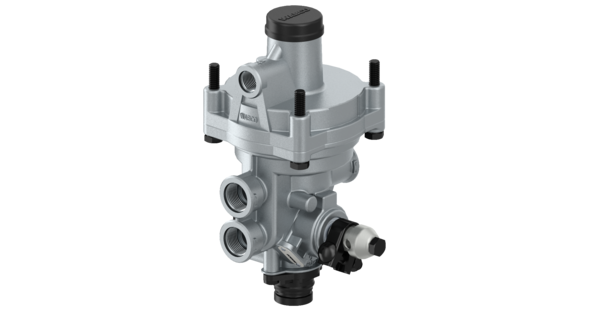

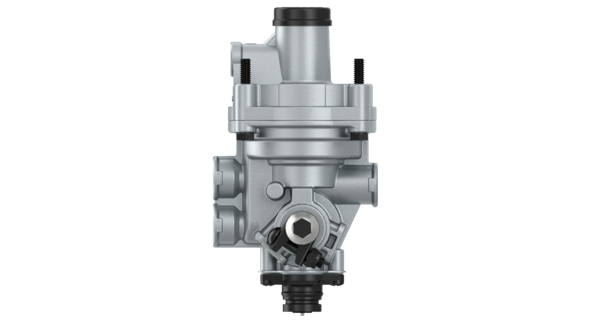

LSV Relay – mechanical
Part Number: 4757100127
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -30° to +60° |
| Break point | 0.6 bar |
| Calculated Volume (dm³) | 3.4608 |
| Distance between bolts | 84×84 mm |
| Exchange unit for | 4757100120 |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Type of operation | Dynamic |
| GTIN | 04057875224068 |
| Size (mm x mm x mm) | 227 x 121 x 126 |
| UPC | 193133260141 |
| Weight (kg) | 1.569 |
| Weight (lb) | 3.459 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518948R |
| PACCAR | 1518948R |
