Description

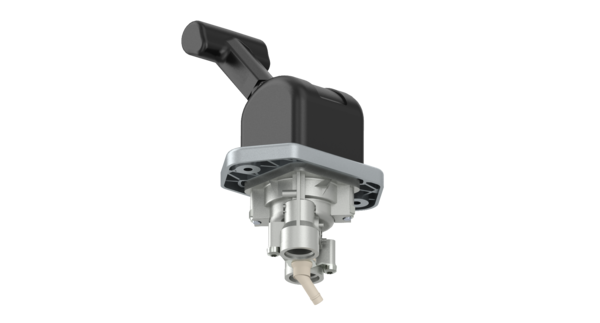

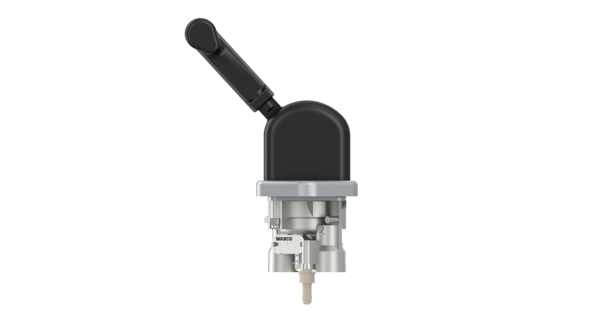

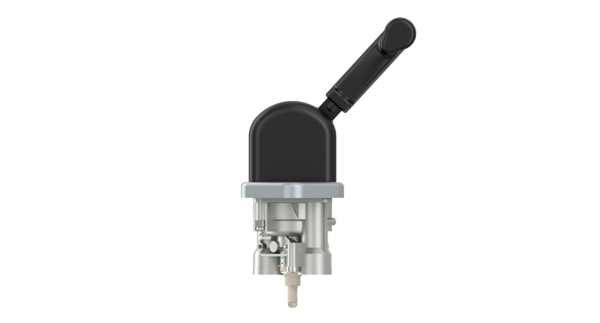

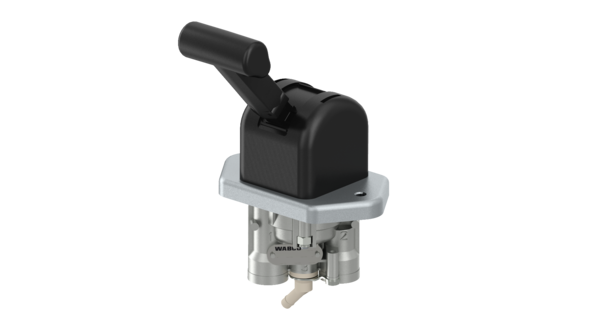

Hand Brake Valve
Part Number: 9617234140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 73° |
| Calculated Volume (dm³) | 2.3653 |
| Color | Black/Black |
| Distance between holes | 80 mm |
| Exhaust | Union |
| Max. operating pressure | 10.0 bar |
| Mounting | M6 |
| Parking position | 73° |
| Port thread 1 | M16 x 1.5 JED – 464 |
| Port thread 21 | M16 x 1.5 JED – 464 |
| Port threads | M16 x 1.5 VOSS |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875297840 |
| Size (mm x mm x mm) | 114 x 228 x 91 |
| UPC | 193133370802 |
| Weight (kg) | 0.527 |
| Weight (lb) | 1.1618 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518240 |
| RENAULT | 5010097861 |
