Description

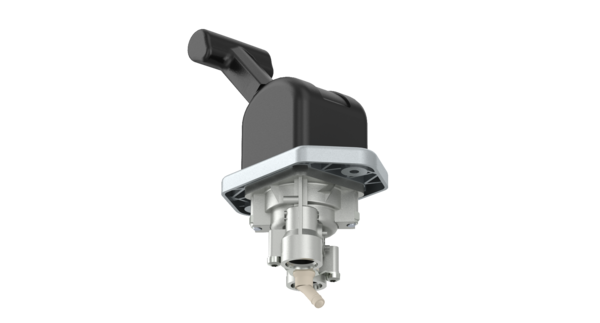

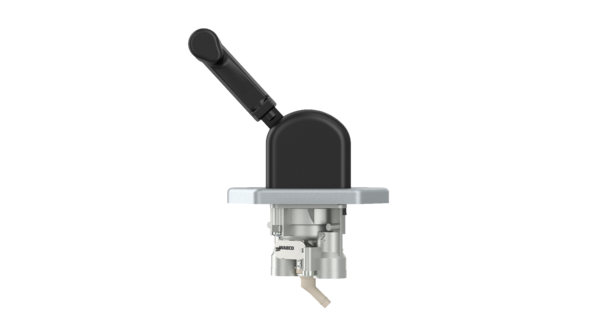

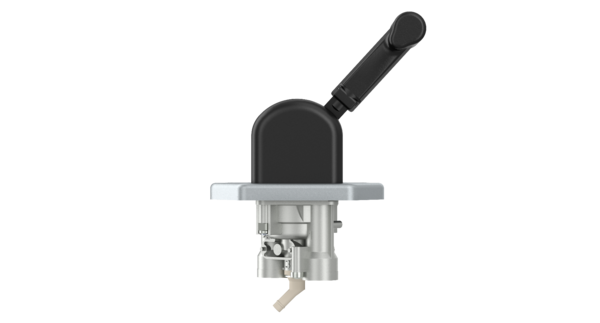

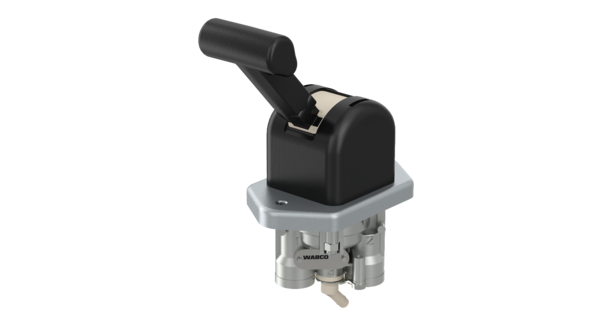

Hand Brake Valve
Part Number: 9617234030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 73° |
| Calculated Volume (dm³) | 1.0772 |
| Color | Black/Black |
| Distance between holes | 80 mm |
| Exhaust | Hose nozzle Ø 6.0 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | M6 |
| Port thread 1 | M16 x 1.5 JED – 464 |
| Port thread 21 | M16 x 1.5 JED – 464 |
| Port threads | M16 x 1.5 VOSS |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875297789 |
| Size (mm x mm x mm) | 166 x 103 x 63 |
| UPC | 193133370796 |
| Weight (kg) | 0.513 |
| Weight (lb) | 1.131 |
OEM Cross References
| Brand | Reference No |
|---|---|
| RENAULT | 5000452904 |
