Description

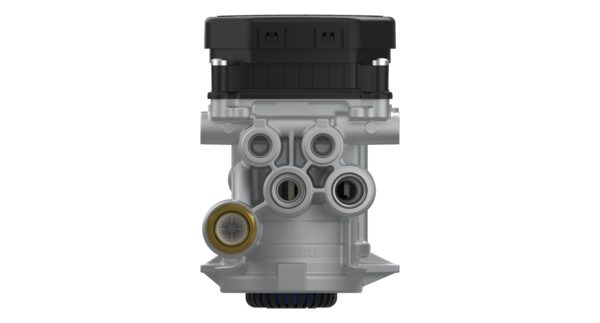

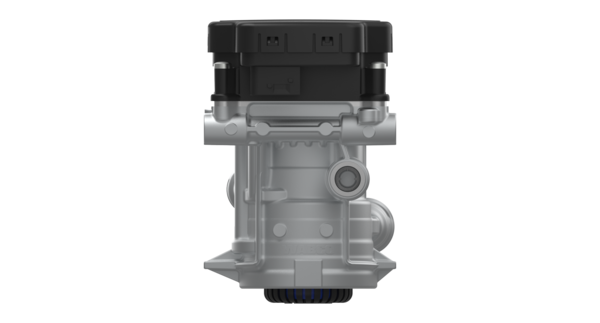

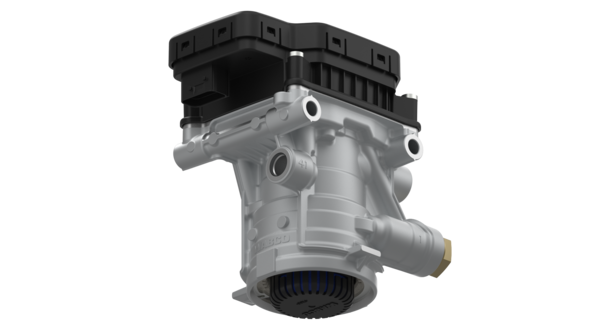

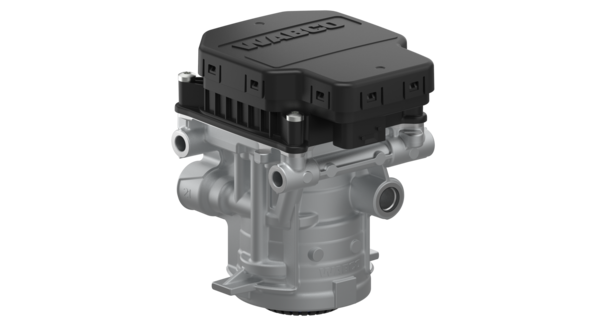

Electro-Pneumatic Hand Brake
Part Number: 4804003140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.417 |
| Electrical connection | Tyco 12 pin HDSCS connector |
| Max. operating pressure | 10 bar |
| Port thread 1 | M22 x 1.5 JED-388-4 |
| Port thread 21 | M22 x 1.5 JED-388-4 |
| Port thread 41 | M16 x 1.5 JED-388-4 |
| Product category | Device |
| Protection class | IP6K6K, IP6K9K |
| Technical specification | OE specification |
| Temperature range | -40 °C to 80 °C |
| Voltage | 24 V |
| GTIN | 04057885262395 |
| Size (mm x mm x mm) | 187 x 186 x 127 |
| UPC | 193133575184 |
| Weight (kg) | 2.085 |
| Weight (lb) | 4.597 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRIZAR | 8202214 |
| IRIZAR | 400024657(A08) |
| VAN HOOL | 11789684 |
| VDL | 11789684 |
| VOLTA | P1002162-AB |
