Description

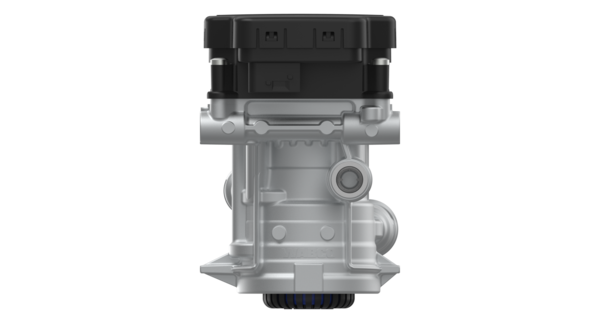

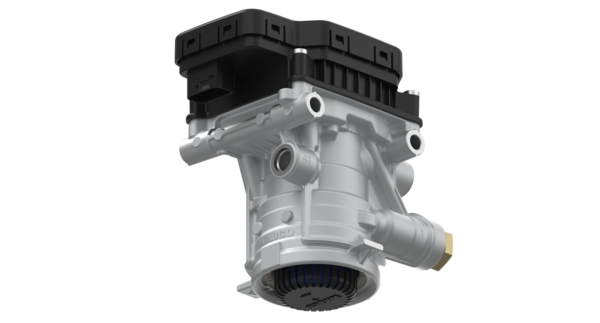

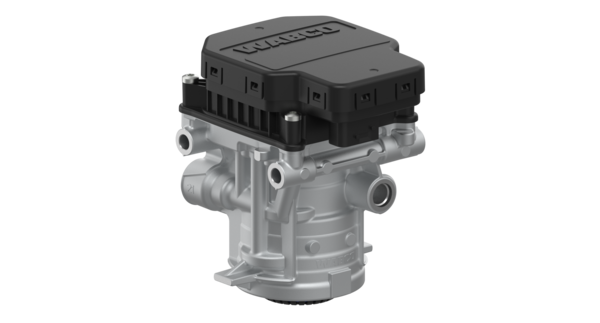

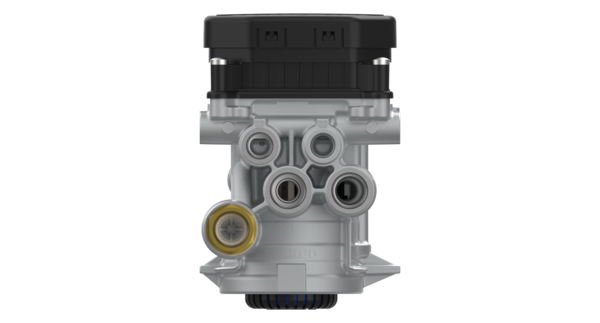

Electro-Pneumatic Hand Brake
Part Number: 4804003100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.978 |
| Electrical connection | Tyco 12 pin HDSCS connector |
| Max. operating pressure | 10 bar |
| Port thread 1 | M22 x 1.5 JED-388-4 |
| Port thread 21 | M22 x 1.5 JED-388-4 |
| Port thread 22 | M16 x 1.5 JED-388-4 |
| Port thread 41 | M16 x 1.5 JED-388-4 |
| Product category | Device |
| Protection class | IP6K6K, IP6K9K |
| Technical specification | OE specification |
| Temperature range | -40 °C to 80 °C |
| Voltage | 24 V |
| GTIN | 04057885181221 |
| Size (mm x mm x mm) | 180 x 130 x 170 |
| UPC | 193133575191 |
| Weight (kg) | 2.22 |
| Weight (lb) | 4.894 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ISUZU (ANADOLU) | 384432926051 |
| ROSENBAUER | 26038B |
