Description

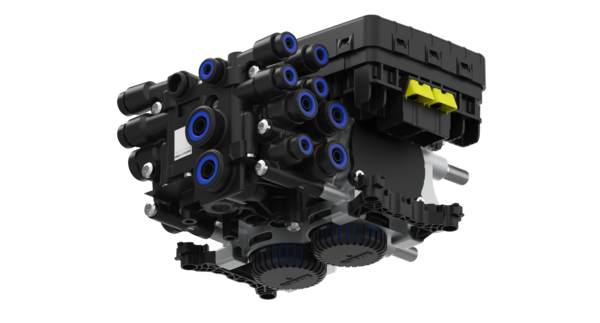

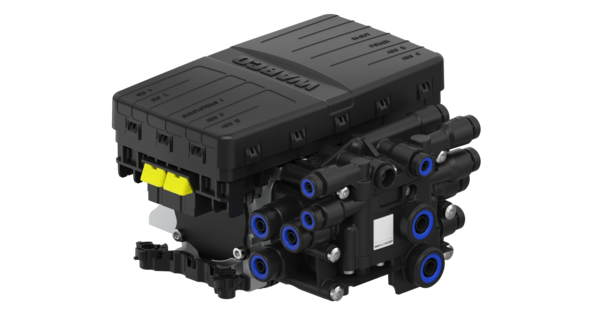

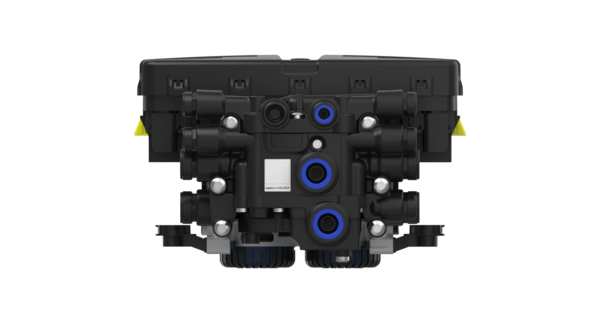

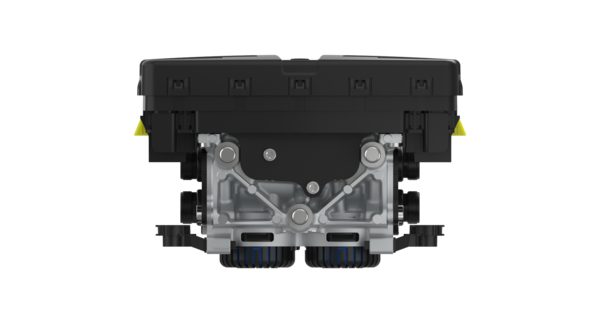

EBS Trailer Modulator
Part Number: 4801021050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.612 |
| Max. operating pressure | 9.0 bar |
| Mounting | 3x M12 |
| Port thread 1 | M8 x 1 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Silencer |
| Port thread 4 | M8 x 1 |
| Port thread 5 | Closed |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 4S/2M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057885109959 |
| Size (mm x mm x mm) | 257 x 220 x 170 |
| UPC | 193133554431 |
| Weight (kg) | 5.1 |
| Weight (lb) | 11.24 |
