Description

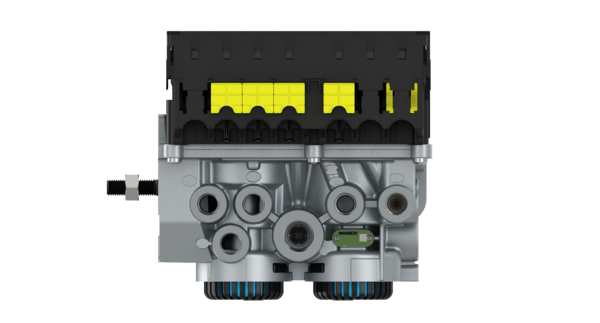

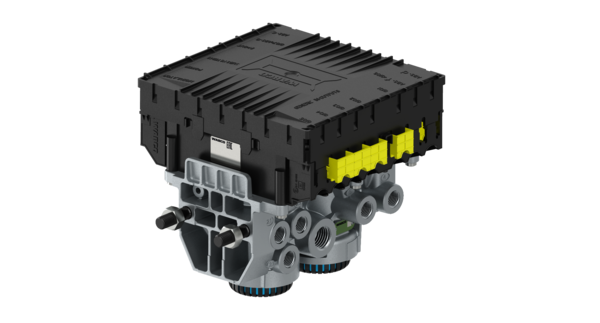

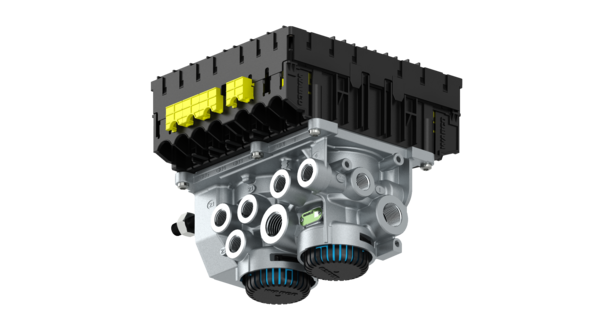

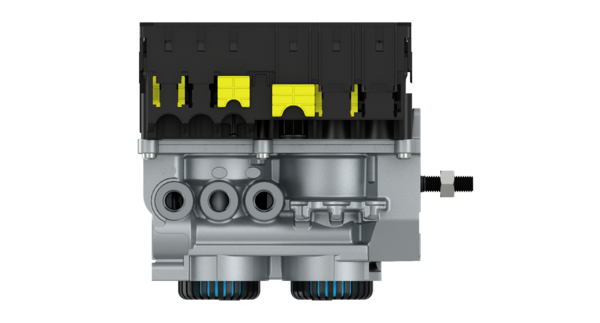

EBS Trailer Modulator 24 Volt
Part Number: 480102037R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 33.6 |
| Distance between bolts | 70.0 mm |
| Important information | This modulator is based on version E3. No possibility to update to higher version. |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x M12 |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M16 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 152 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Port thread 5 | M16 x 1.5 JED – 152 |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 2S/2M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Standard |
| Version | TEBS E without PEM |
| Voltage | 24 V |
| GTIN | 04057885629129 |
| Size (mm x mm x mm) | 300 x 280 x 400 |
| UPC | 193133555841 |
| Weight (kg) | 5.42 |
| Weight (lb) | 11.95 |
