Description

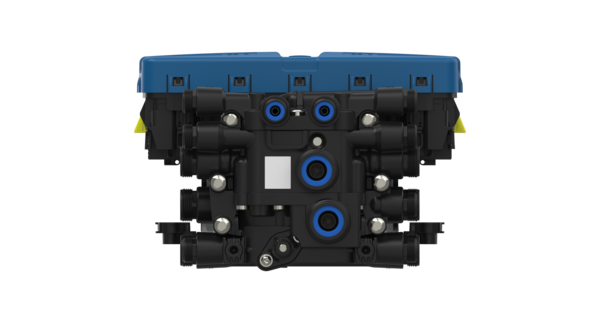

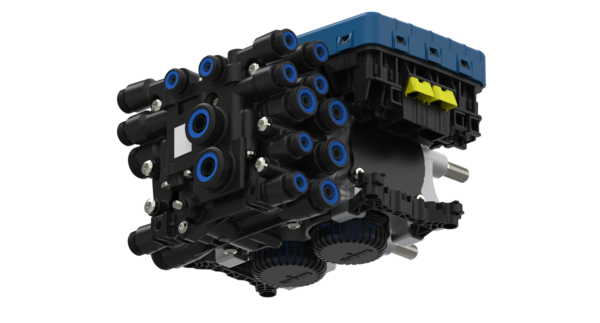

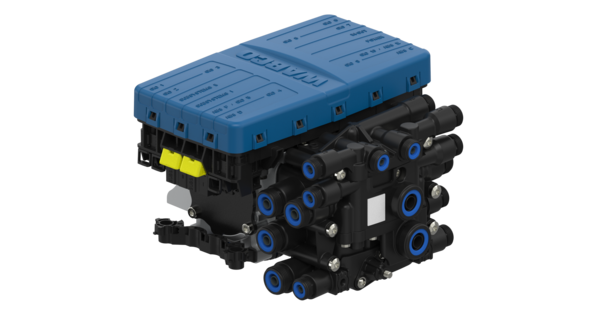

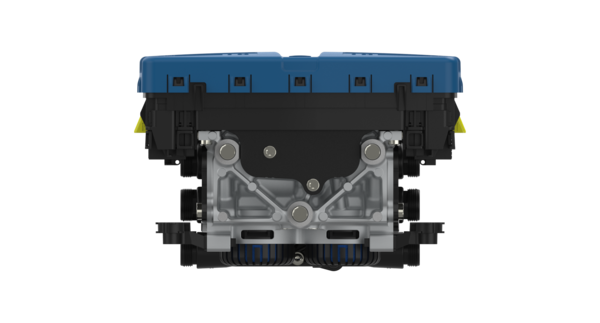

EBS Trailer Modulator
Part Number: 4801023130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.612 |
| Max. operating pressure | 9.0 bar |
| Port thread 1 | M15 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | M8 x 1 |
| Port thread 5 | M8 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057894211209 |
| Size (mm x mm x mm) | 257 x 220 x 170 |
| UPC | 193133575597 |
| Weight (kg) | 5.35 |
| Weight (lb) | 11.79 |
