Description

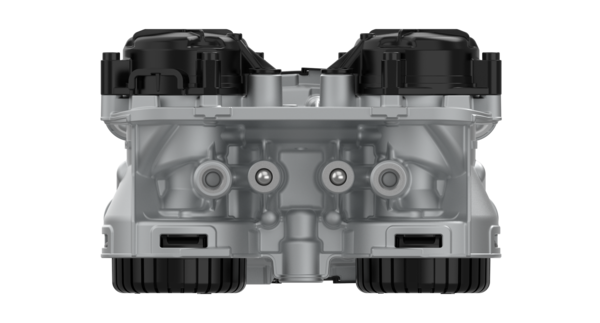

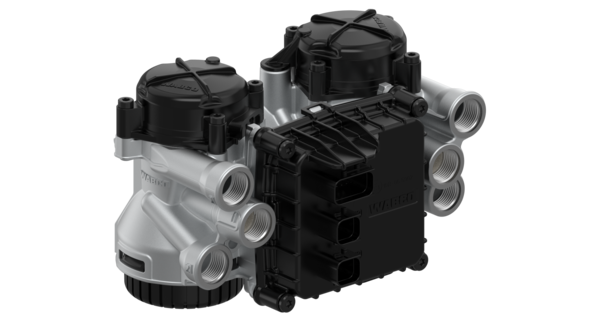

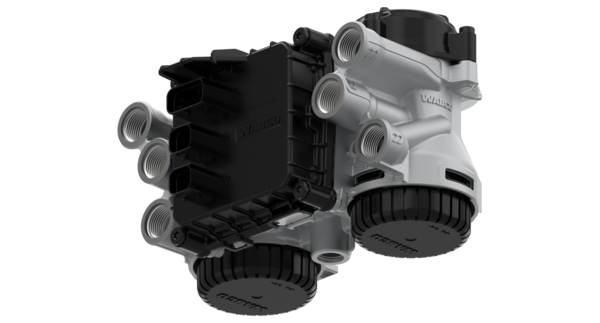

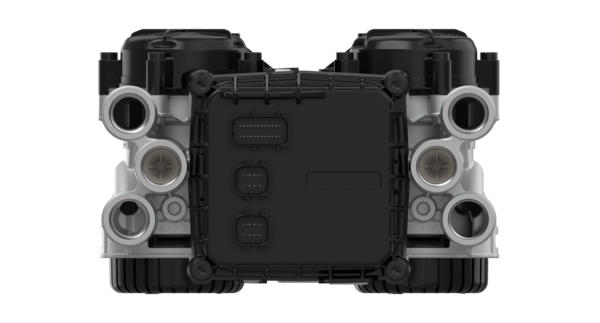

EBS Axle Modulator 2-Channel – Gen4
Part Number: 4801062040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.204 |
| Distance between holes | 100 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10500 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875229452 |
| Size (mm x mm x mm) | 235 x 160 x 165 |
| UPC | 193133421153 |
| Weight (kg) | 3.115 |
| Weight (lb) | 6.867 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAW | 3560035-1051-C00 |
| VDL | 30218582 |
