Description

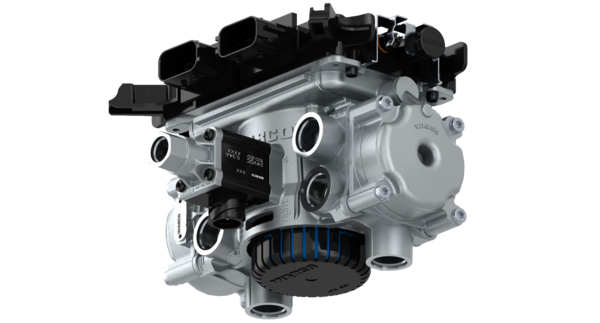

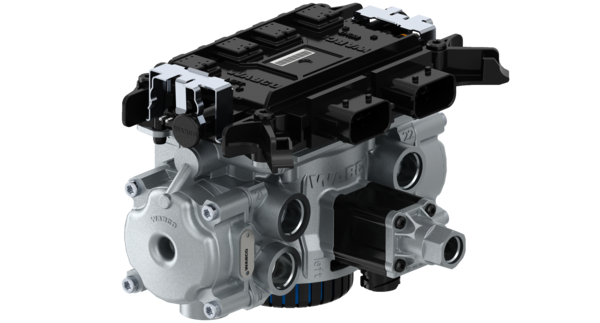

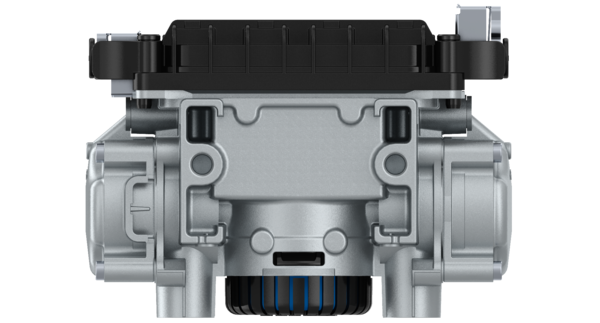

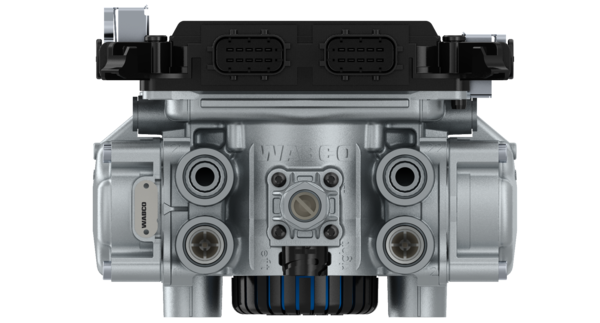

EBS Axle Modulator 2-Channel – Gen3
Part Number: 4801050070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | 3 and 4-Axle vehicles |
| Calculated Volume (dm³) | 6.0645 |
| Comments | Volume production variant 2 |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 6 x 2, 6 x 4, 8 x 4 |
| Voltage | 24 V |
| GTIN | 7895851085114 |
| Size (mm x mm x mm) | 220 x 179 x 154 |
| UPC | 193133465591 |
| Weight (kg) | 3.392 |
| Weight (lb) | 7.4781 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | A0004294324 |
| MERCEDES-BENZ | 0004294324 |
| MERCEDES-BENZ | 0004293824 |
| MERCEDES-BENZ | A0004293824 |
