Description

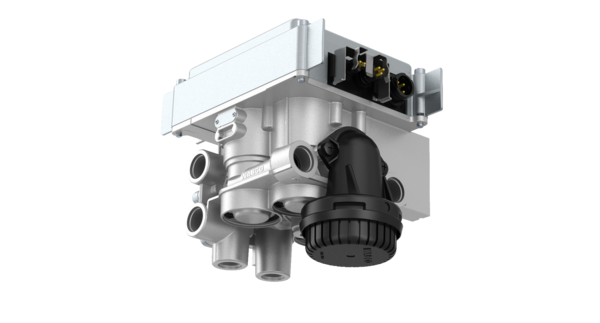

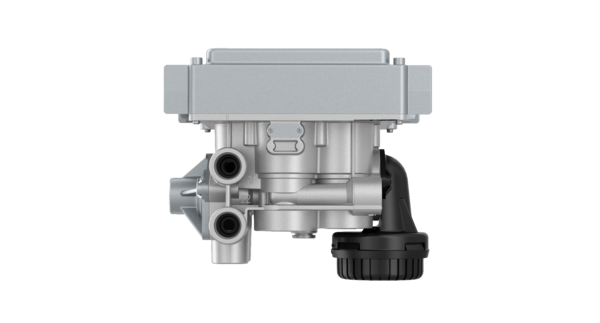

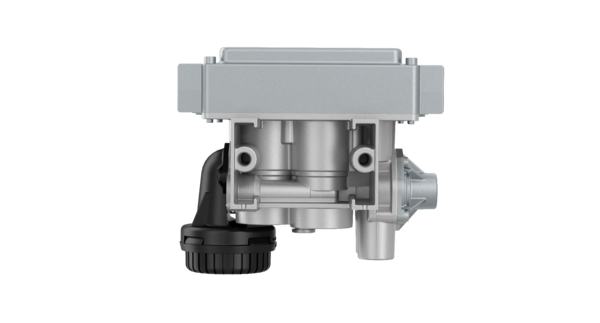

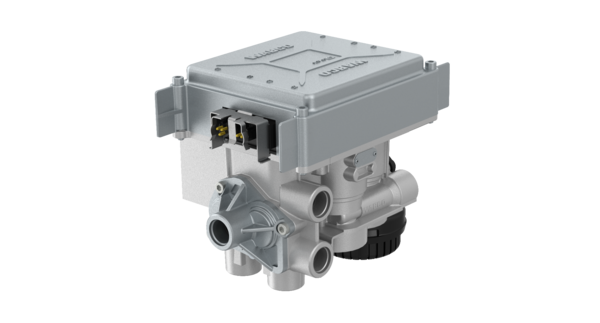

EBS Axle Modulator 2-Channel – Gen1
Part Number: 4801030660
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | 4×2 |
| Calculated Volume (dm³) | 8.198 |
| Comments | WIE 4801030060 BIS 9/99 |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Important information | Learn more about the core return process (Click here ) |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 12 | M22 x 1.5 JED – 388 |
| Port thread 13 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M16 x 1.5 JED – 388 |
| Port thread 3 | Integrated Silencer |
| Product category | Device |
| Protection class | IP 66, IP 69 K |
| Rated current | 5 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 4 × 2 with backup valve |
| Voltage | 24 V |
| GTIN | 04057875229216 |
| Size (mm x mm x mm) | 229 x 179 x 200 |
| UPC | 193133316909 |
| Weight (kg) | 5.889 |
| Weight (lb) | 12.983 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0004291424 |
| EVOBUS | A004291424 |
| MERCEDES-BENZ | 0004291424 |
| MERCEDES-BENZ | A0004291424 |
