Description

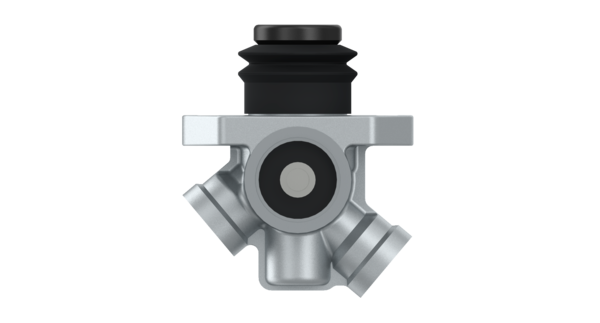

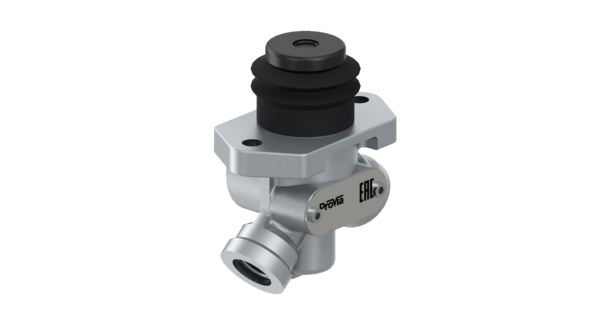

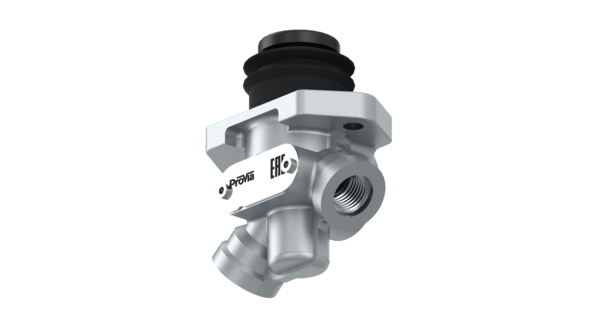

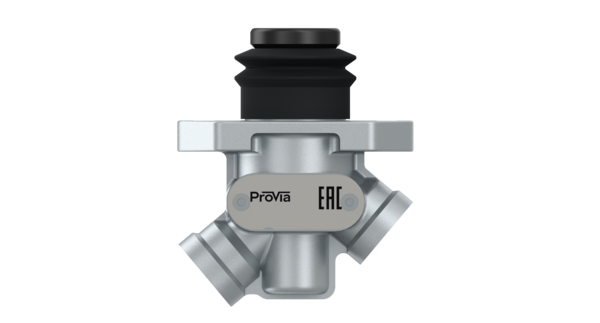

Directional Control Valve
Part Number: PRO0360020
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuating range | 4.5 mm |
| Actuation | Push |
| Calculated Volume (dm³) | 0.618 |
| Exhaust | M10 x 1 |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x M6 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 3 | M10 x 1 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -25°C to +80°C |
| Type | 3/2 |
| GTIN | 04057877050337 |
| Size (mm x mm x mm) | 100 x 95 x 65 |
| UPC | 193134009701 |
| Weight (kg) | 0.184 |
| Weight (lb) | 0.4057 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 500356849 |
| MAN | 81998041230 |
| MAN | 81521856060 |
| NEOPLAN | 81521856060 |
