Description

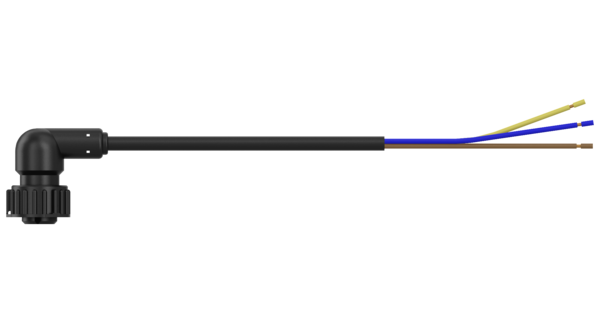

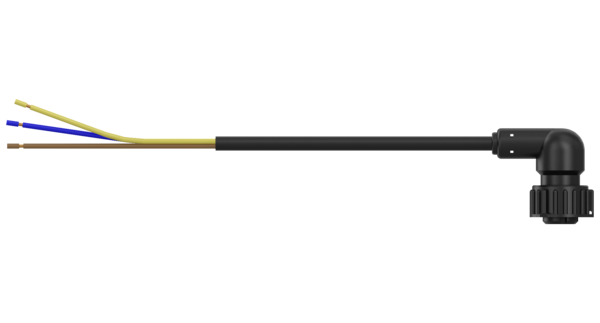

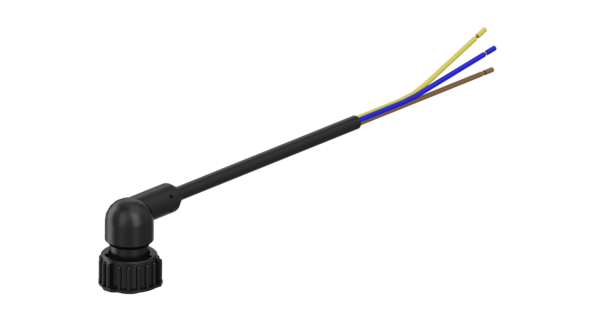

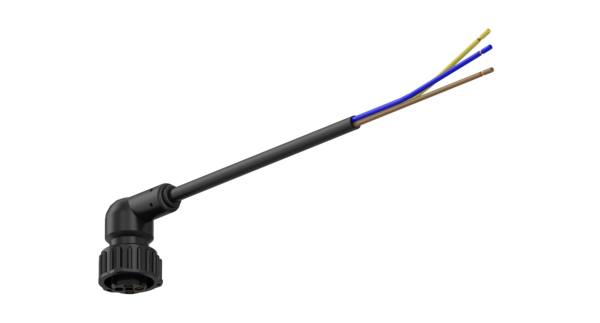

Connecting Cable
Part Number: 4495131000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Motor vehicle |

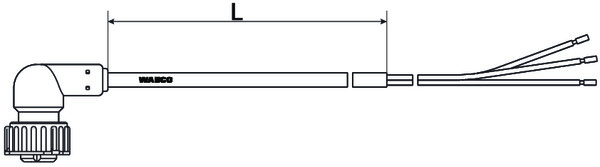

| Cable end (left side of diagram) | Bayonet socket ISO 15170-B1-3.1-Sn/K1 |
| Cable end (right side of diagram) | Open 3-Strand with push-on contacts 3 x 1.0 mm² |
| Calculated Volume (dm³) | 5.6031 |
| Length | 10 m |
| Ports | ABS Modulator |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851085732 |
| Size (mm x mm x mm) | 365 x 357 x 43 |
| UPC | 193133296492 |
| Weight (kg) | 0.557 |
| Weight (lb) | 1.228 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 446102021 |
| DAF | 1518756 |
| FAUN | 99707007621 |
| FAW | S3550370-6S |
| FAW | S3550375-6S |
| FOTON | 1612935610110 |
| IRISBUS | 5801115886 |
| IVECO | 5801115886 |
| OTOKAR | 13E0008812AA |
| SCANIA | 2091259 |
| SHAANXI | DZ9100770656 |
| VAN HOOL | 11167600 |
