Description

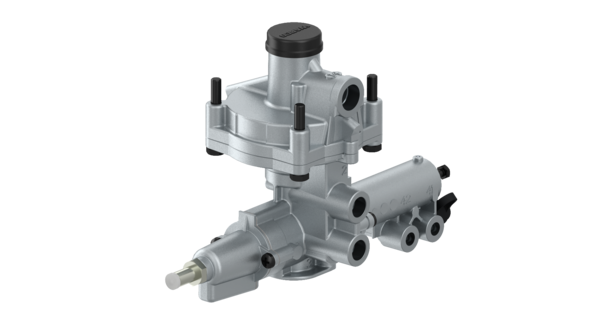

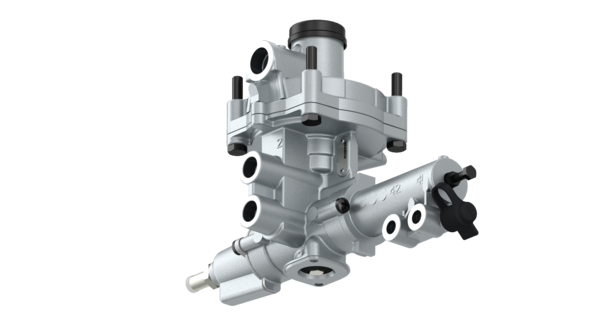

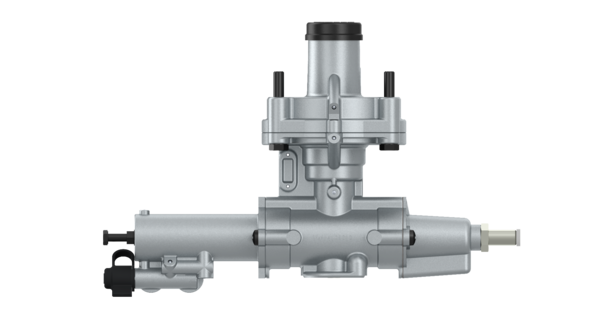

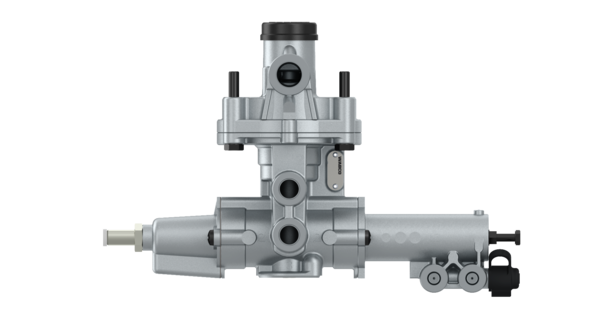

Automatic Load Sensing Valve
Part Number: 4757145100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 9.414 |
| Distance between bolts | 84×84 mm |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here ) |
| Max. operating pressure | 12.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M16 x 1.5 |
| Port thread 4 | M22 x 1.5 |
| Port thread 41 | M12 x 1.5 |
| Port thread 42 | M12 x 1.5 |
| Port thread 43 | Test Connection |
| Product category | Device |
| Regulating range | 0.4 to 3.6 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Static |
| GTIN | 04057875226055 |
| Size (mm x mm x mm) | 194 x 337 x 144 |
| UPC | 193133315056 |
| Weight (kg) | 1.853 |
| Weight (lb) | 4.0852 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506230 |
| KEMPF | 2203006 |
| SCANIA | 1935107 |
| SCHMITZ CARGOBULL | 050036 |
| SCHMITZ CARGOBULL | 1060769 |
