Description

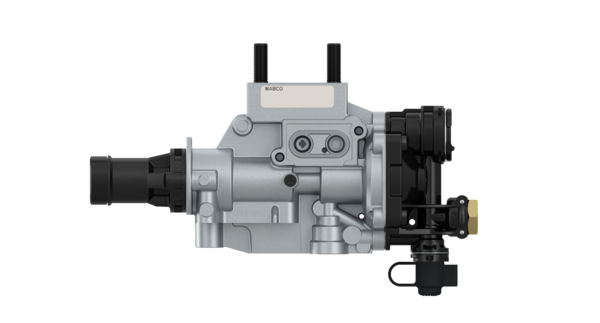

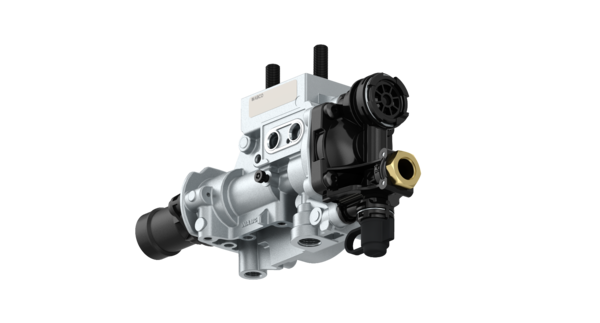

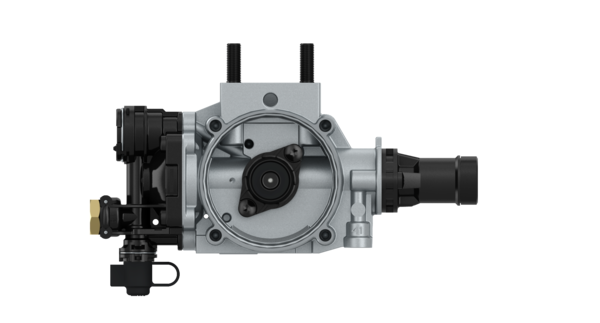

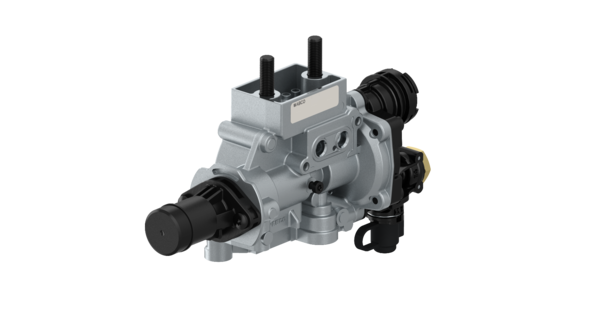

Automatic Load Sensing Valve
Part Number: 4757230000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.7 bar |
| Calculated Volume (dm³) | 3.871 |
| Distance between bolts | 26 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x M10 |
| Operational range | 1.0 to 4.6 bar |
| Port thread 1 | M16 x 1.5 JED-152 |
| Port thread 2 | M16 x 1.5 JED – 152 |
| Product category | Device |
| Range of adjustment | 1.0 to 4.6 bar |
| Regulating ratio | 1:5.3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 7895851030275 |
| Size (mm x mm x mm) | 267 x 179 x 81 |
| UPC | 193133315810 |
| Weight (kg) | 1.092 |
| Weight (lb) | 2.4074 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 2T2611555 |
| SCANIA | 1429770 |
| SCANIA | 1935117 |
| VW | 2T2611555 |
| VW | 2TZ611555 |
