Description

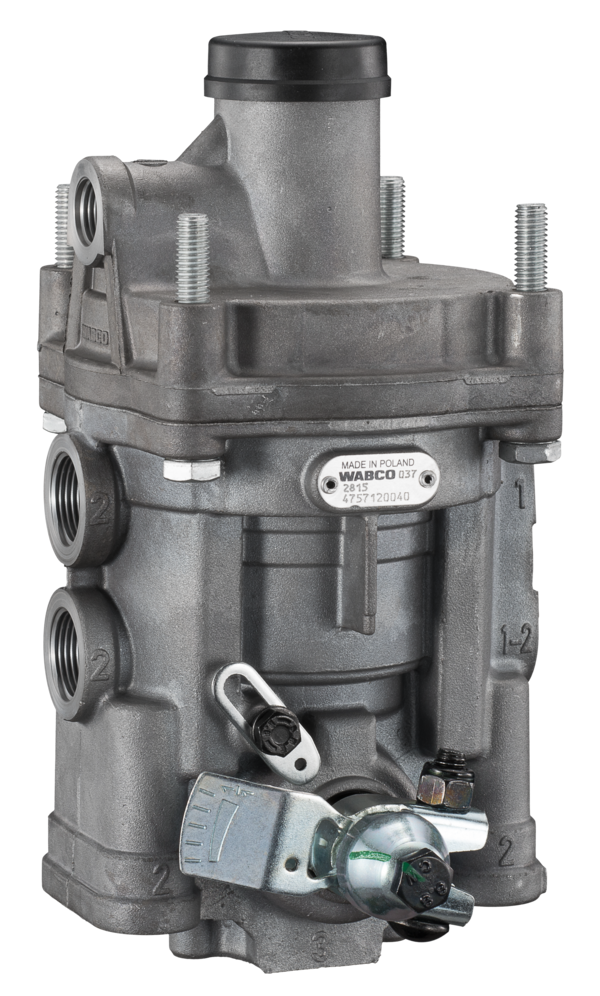

Automatic Load Sensing Valve
Part Number: 4757120040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -45° to 30° |
| Calculated Volume (dm³) | 5.977 |

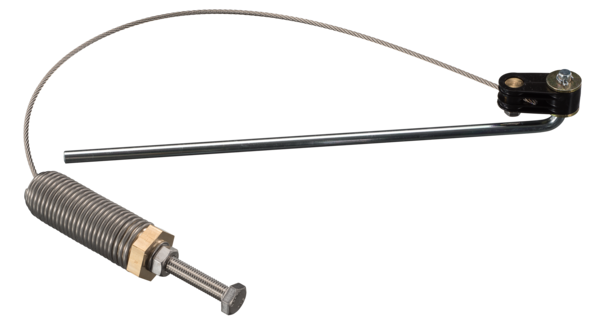

| Comments | With lever and tension spring (range of adjustment: 10mm to 20mm). REV included |
| Distance between bolts | 84×84 mm |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here ) |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 1-2 | M22 x 1.5 |
| Port thread 2 | 2x M22x1.5, 4x M16x1.5 |
| Port thread 3 | Flap exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Version | With Integrated Emergency Valve |
| GTIN | 04057875225768 |
| Size (mm x mm x mm) | 313 x 154 x 124 |
| UPC | 193133315025 |
| Weight (kg) | 2.571 |
| Weight (lb) | 5.6681 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518127 |
| OTOKAR | AIF0662 |
| SCANIA | 2090015 |
