Description

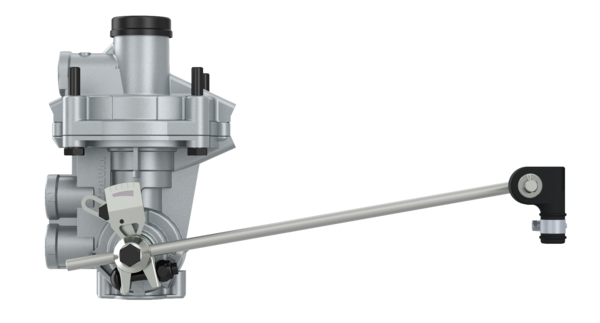

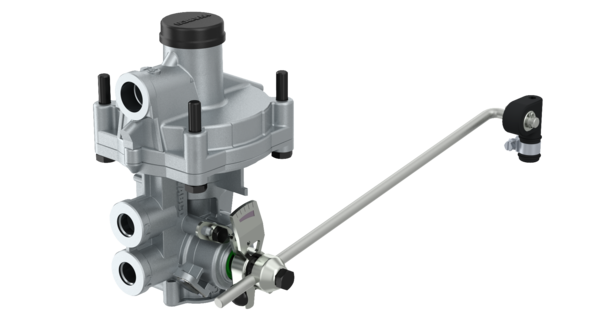

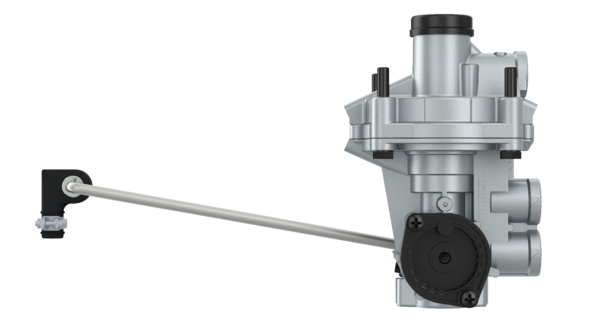

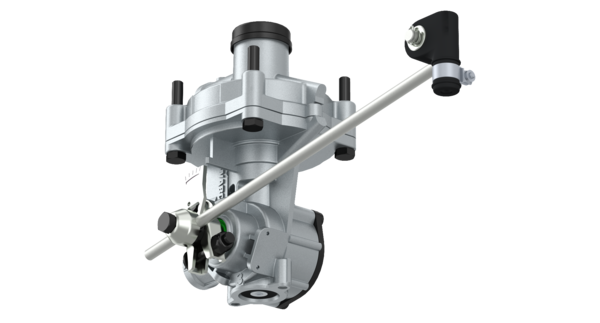

Automatic Load Sensing Valve
Part Number: 4757130020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -50° to 20° |
| Calculated Volume (dm³) | 5.4415 |
| Comments | With lever |
| Distance between bolts | 84×84 mm |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here ) |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M16 x 1.5 |
| Port thread 4 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Type of operation | Dynamic |
| GTIN | 7895851045354 |
| Size (mm x mm x mm) | 322 x 131 x 129 |
| UPC | 193133315131 |
| Weight (kg) | 1.64 |
| Weight (lb) | 3.6156 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DOLL | 7098771 |
| GOLDHOFER | 169743 |
| SCANIA | 2090017 |
| SCHMITZ CARGOBULL | INS0120087 |
| SCHWARZMÜLLER | 69469 |
| TIRSAN | 21151103201 |
