Description

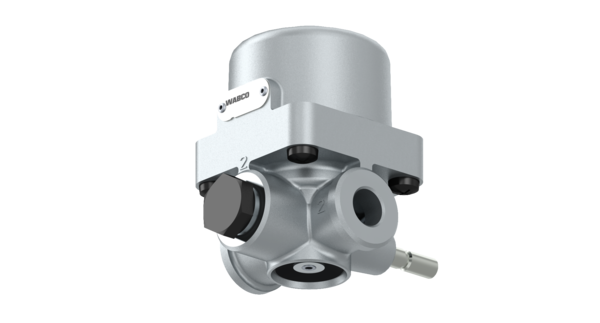

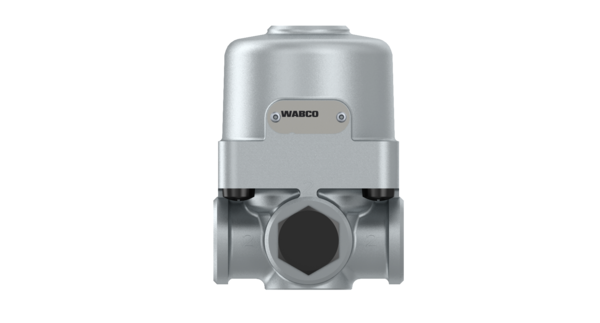

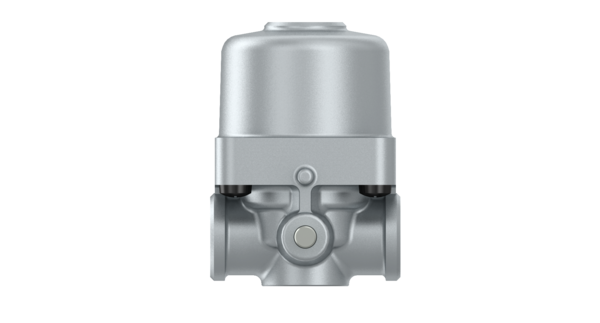

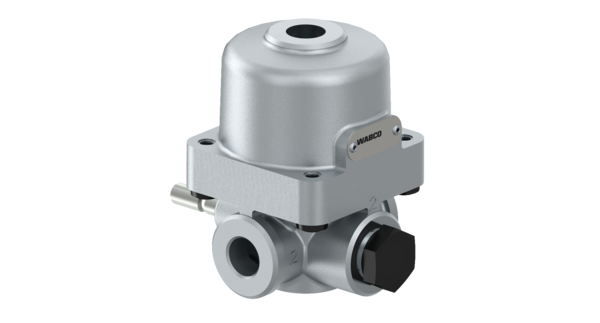

Adaptor Valve
Part Number: 9750020170
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 4.1 bar |
| Calculated Volume (dm³) | 0.70936 |
| Limited backflow | 1.2 bar |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | 3x M16 x 1.5 (1x closed) |
| Port thread 2.1 | Quick Connection M10 x 1 |
| Port thread 2.2 | M16 x 1.5 |
| Product category | Device |
| Regulating ratio | 1:1 (after break point) |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851030954 |
| Size (mm x mm x mm) | 97 x 103 x 71 |
| UPC | 193133378259 |
| Weight (kg) | 0.584 |
| Weight (lb) | 1.2875 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 9750020170 |
| DAF | 0294748 |
| DAF | 294748 |
| EVOBUS | A0014306481 |
| FAUN | 99707731342 |
| FELDBINDER | 006053 |
| FRUEHAUF | 5311-046 |
| GOLDHOFER | 157742 |
| IRISBUS | 42079878 |
| IVECO | 42079878 |
| IVECO | 42089421 |
| KODAIRA | V710000401 |
| MAN | 81521206050 |
| MAN | 9750020170 |
| MERCEDES-BENZ | 0014306418 |
| MERCEDES-BENZ | 0014306481 |
| MERCEDES-BENZ | A0014306481 |
| NEOPLAN | 112234800 |
| NEOPLAN | 81521206050 |
| NIPPON TREX | 912032-00014 |
| SCANIA | 2090404 |
| SCHMITZ CARGOBULL | 051343 |
| SCHMITZ CARGOBULL | 51343 |
| SHOWA | A8926-124300 |
| SOLARIS | 1102191100 |
| TOHO | C3276-4632-2A |
| TOHO | C3276-4632-2 |
| VDL | 28210203100 |
| VDL | 20187801 |
| VDL | 0294748 |
| VDL | 187801 |
| VOLVO | 4242965 |
