Description

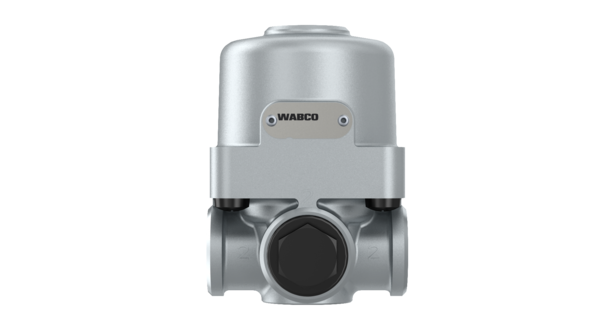

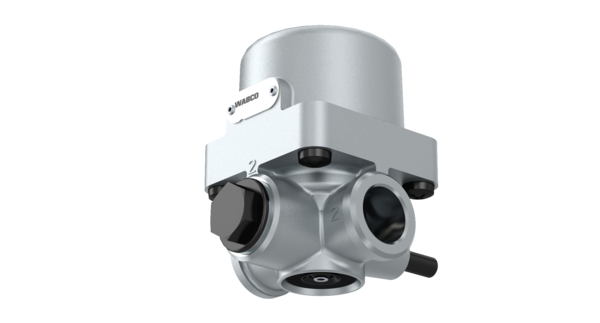

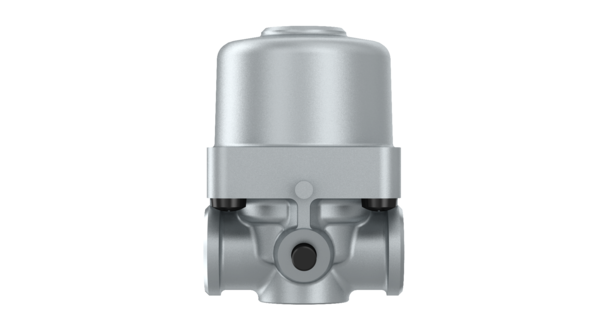

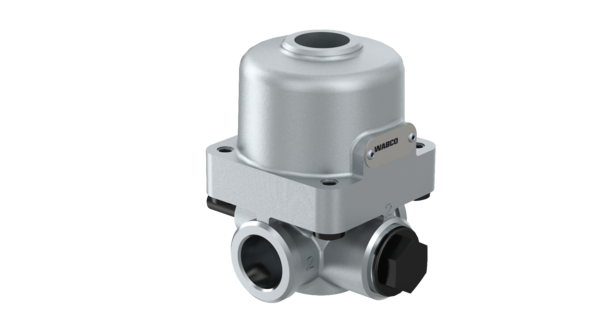

Adaptor Valve
Part Number: 9750020030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.70276 |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 3x M22 x 1.5 (1x closed) |
| Port thread 2.1 | M22 x 1.5 |
| Port thread 2.2 | M22x1.5 |
| Product category | Device |
| Regulating ratio | 1:1 (after break point) |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875305057 |
| Size (mm x mm x mm) | 101 x 98 x 71 |
| Weight (kg) | 0.557 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 02513784 |
| IVECO | 2513784 |
| LIEBHERR | 502958408 |
| MAN | 84521206010 |
| NEOPLAN | 112234900 |
