Description

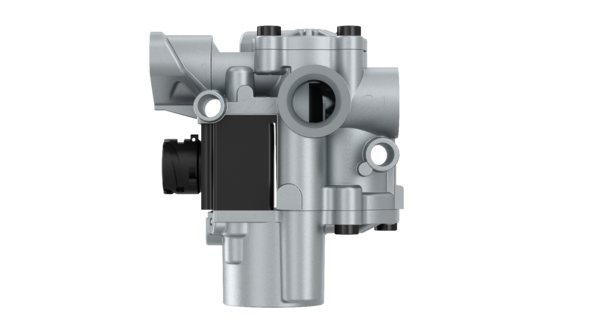

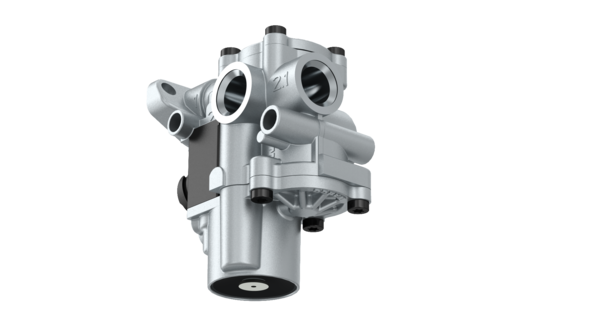

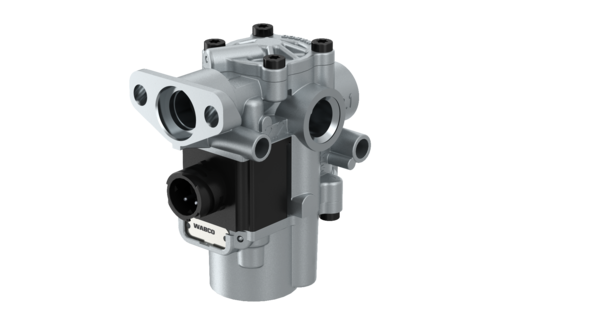

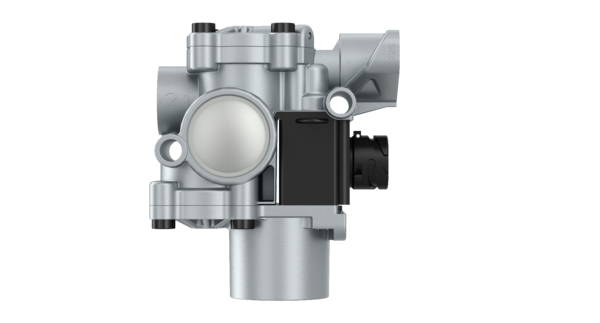

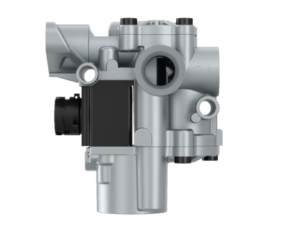

ABS Solenoid Modulator Valve
Part Number: 4721950790
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.728 |
| Cooling | Air |
| Distance between holes | 71×20 mm |
| Electrical connection | Bayonet DIN 72 585 A1-3.1-Sn/K1 |
| Exhaust | Flap |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | Flange (Ø24) |
| Port thread 2.1 | 1/2 “- 14 Dry Seal NPTF |
| Port thread 2.2 | 1/2″-14 Dry Seal NPTF |
| Product category | Device |
| Protection class | IP 66, IP 69K EN 60529, IEC 529 |
| Rated current | 2220 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 7895851048379 |
| Size (mm x mm x mm) | 102 x 60 x 119 |
| UPC | 193133443438 |
| Weight (kg) | 0.72 |
| Weight (lb) | 1.587 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4721950790 |
| INTERNATIONAL | S4721950790 |
| KENWORTH | S472-195-079-0 |
| MACK | 8235-S4721950790 |
| MACK | 6300-4721950790 |
| MERITOR | S4721950790 |
| PETERBILT | S472-195-079-0 |
| VOLVO | S4721950790 |
| VOLVO | WAB4721950790 |
