Description

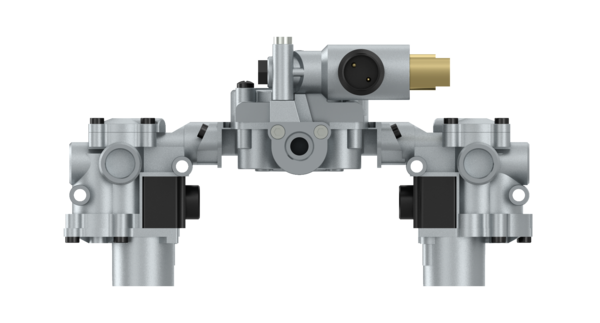

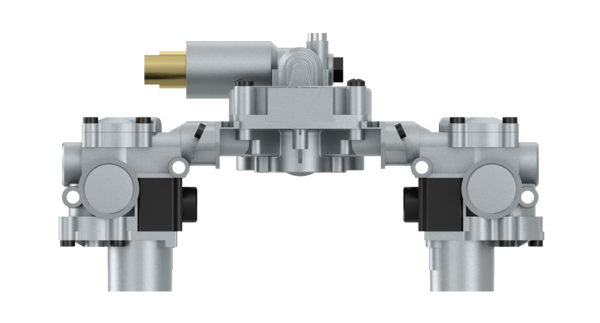

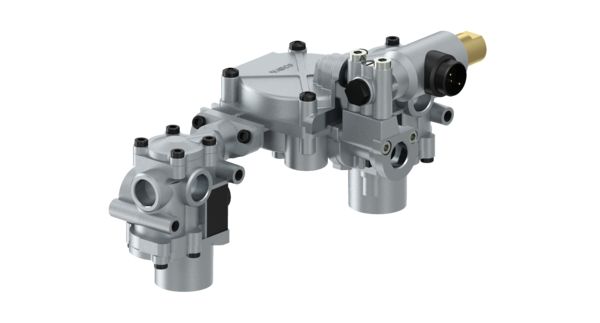

ABS axle package
Part Number: 4725002230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 10.368 |
| Electrical connection | DIN 72585-A1-3.1-Sn/K1, DIN 72585-A1-2.1-Sn/K1 |
| Max. operating pressure | 11.0 bar |
| Port thread 1 | 1/2 – 14 Dry Seal NPTF |
| Port thread 2 | 3/8 – 18 Dry Seal NPTF |
| Port thread 2.1 | 1/2 – 14 Dry Seal NPTF |
| Port thread 2.2 | 1/2 – 14 Dry Seal NPTF |
| Port thread 3 | Exhaust |
| Port thread 4 | 1/4″ – 18 Dry Seal NPTF |
| Product category | Device |
| Protection class | IP66, IP69K |
| Response pressure | 0.38 bar |
| System | 4S/4M, 6S/4M |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875219880 |
| Size (mm x mm x mm) | 320 x 180 x 180 |
| UPC | 193133443711 |
| Weight (kg) | 3.018 |
| Weight (lb) | 6.6535 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4725002230 |
| INTERNATIONAL | S4725002230 |
| KENWORTH | S472-500-223-0 |
| MACK | 8235-S4725002230 |
| MACK | 6300-4725002230 |
| MERITOR | S4725002230 |
| PETERBILT | S472-500-223-0 |
| VOLVO | S4725002230 |
| VOLVO | WAB4725002230 |
