Description

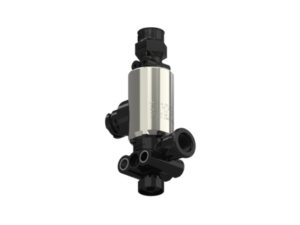

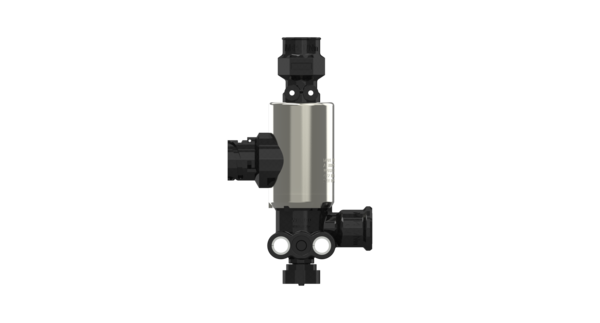

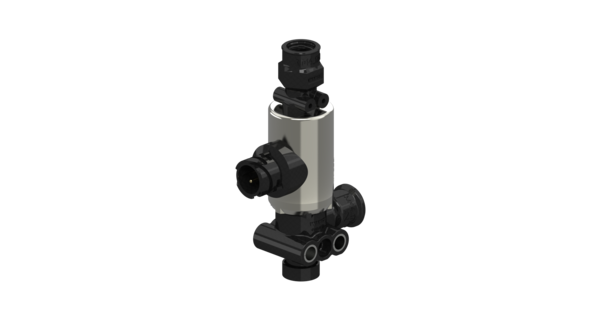

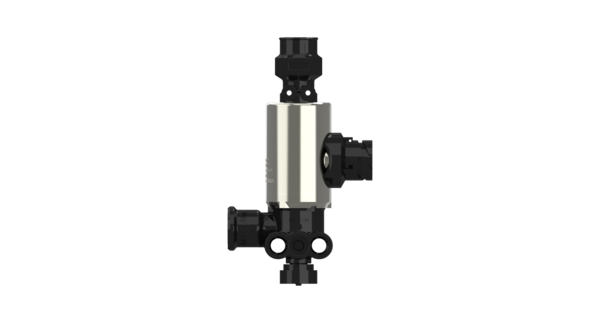

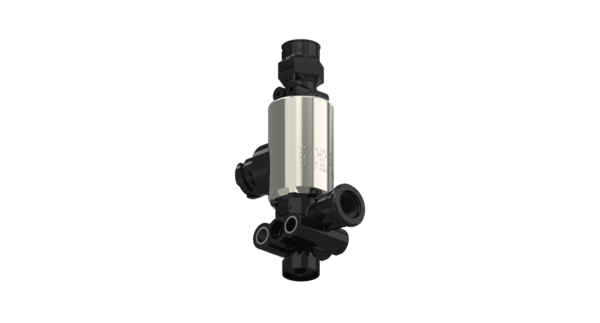

3/2 Directional Control Valve
Part Number: 4721863160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.493 |
| Electrical connection | ISO 15170 A1-2.1-Sn/K2 |
| Exhaust | 4.0 mm |
| Max. operating pressure | 10.0 bar |
| Multi nominal diameter (from port 1 to x) | 4 mm |
| Port thread 1 | V16 x 1.5 JED-388 |
| Port thread 2 | V16 x 1.5 JED – 388 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K7 |
| Rated current | 690 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Normally Open |
| Voltage | 24 V |
| GTIN | 04057875218692 |
| Size (mm x mm x mm) | 145 x 85 x 40 |
| UPC | 193133311348 |
| Weight (kg) | 0.453 |
| Weight (lb) | 0.99869 |
