Description

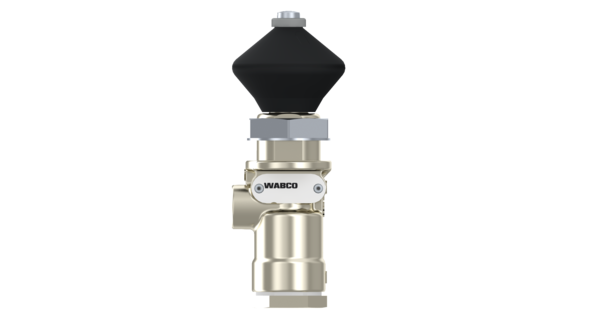

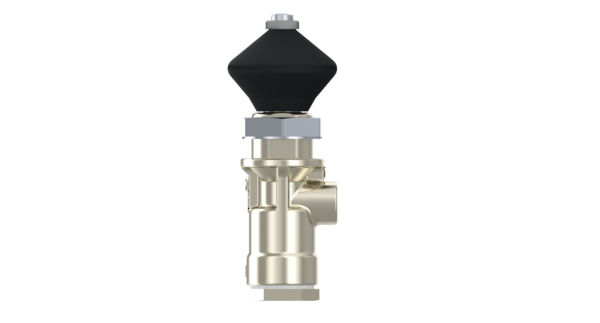

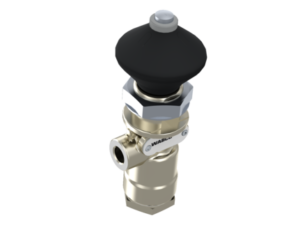

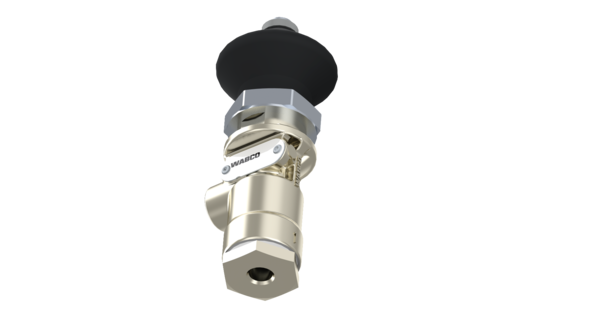

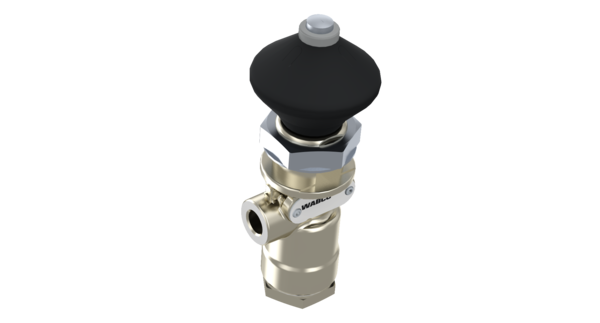

3/2 Directional Control Valve
Part Number: 4630220200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuating range | 12.5 mm |
| Actuation | Push |
| Calculated Volume (dm³) | 0.25168 |
| Comments | With hex.nut : M 26×1.5 |
| Exhaust | M12 x 1.5 |
| Max. operating pressure | 10.0 bar |
| Mounting | M26 x 1.5 |
| Nominal diameter | 4.0 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M10 x 1 |
| Port thread 3 | Exhaust |
| Product category | Device |
| Stroke | 12.5 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 3/2 |
| GTIN | 7895851006584 |
| Size (mm x mm x mm) | 119 x 47 x 45 |
| UPC | 193133442400 |
| Weight (kg) | 0.179 |
| Weight (lb) | 0.39463 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0642909 |
| DAF | 642909 |
| DAF | 649246 |
| KENWORTH | S4630220200 |
| LIEBHERR | 5104544 |
| LIEBHERR | 510454408 |
| MACK | 8235-S4630220200 |
| MERITOR | S4630220200 |
| PACCAR | 1505079 |
| PETERBILT | S4630220200 |
| SCANIA | 1934912 |
| VOLVO | 267859 |
| VOLVO | 268759 |
| VOLVO | 649246 |
