Description
Specifications
| paired article number | 2199133 |
| Fitting Position | Front Axle Right; in front of axle |
| Manufacturer Restriction | ATE |
| Brake Caliper Type | Floating Caliper; Brake Caliper (1 piston) |
| Piston Diameter | 48 mm |
| for brake disc thickness | 12 mm |
| Brake Disc Type | solid |
| for brake disc diameter | 239 mm |
| Material | Cast Iron |
| Net weight | 2.35 kg |
| Weight | 2.505 kg |
| Country of Origin | China |
| Customs Code | 870830 |
OE (Original Equipment) Numbers
| Brand | Reference Numbers |
|---|---|
| VAG | 171615124, 357615124 |
| VW | 171615124, 357615124 |
Cross-Reference Numbers
| Brand | Reference Numbers |
|---|---|

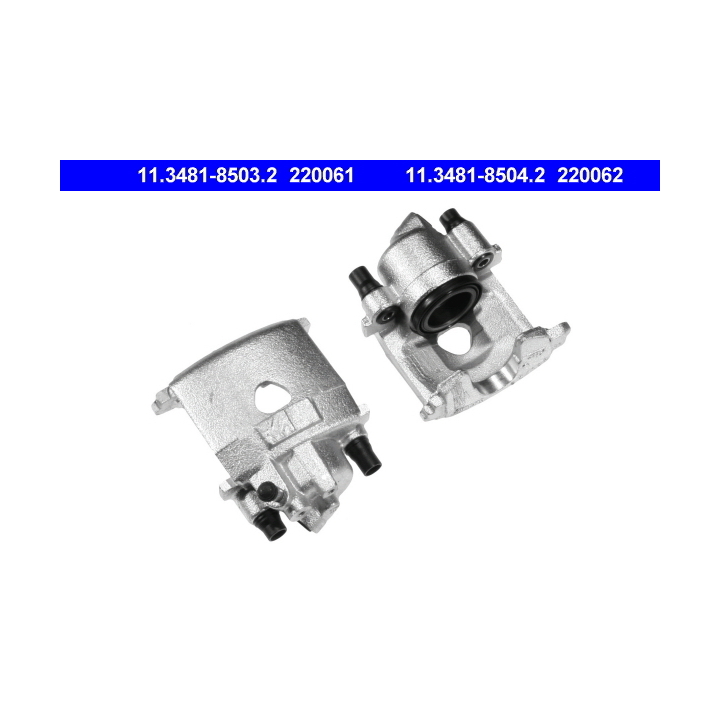

| ATE | 11.3481-8504.2 |
| BREMBO | F85001 |

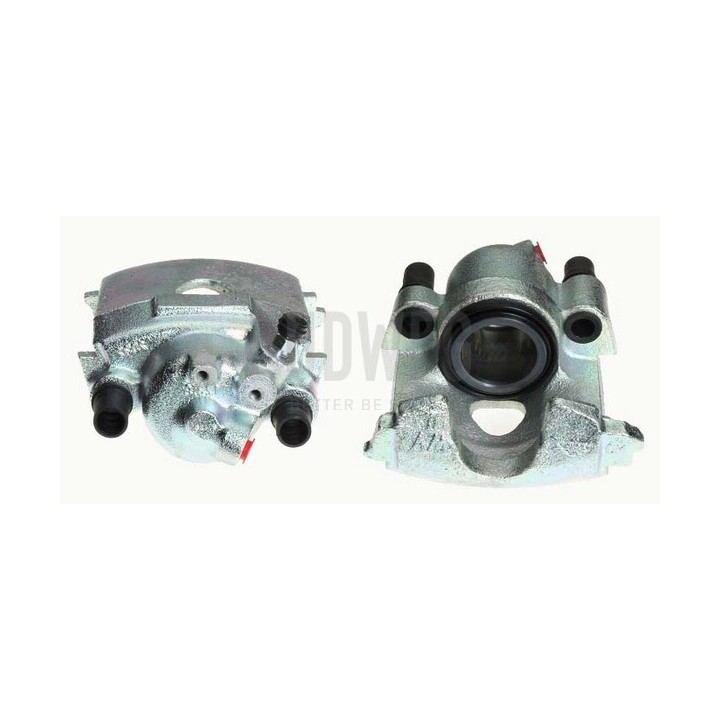

| BUDWEG CALIPER | 34071 |
| CARDONE | 382394 |

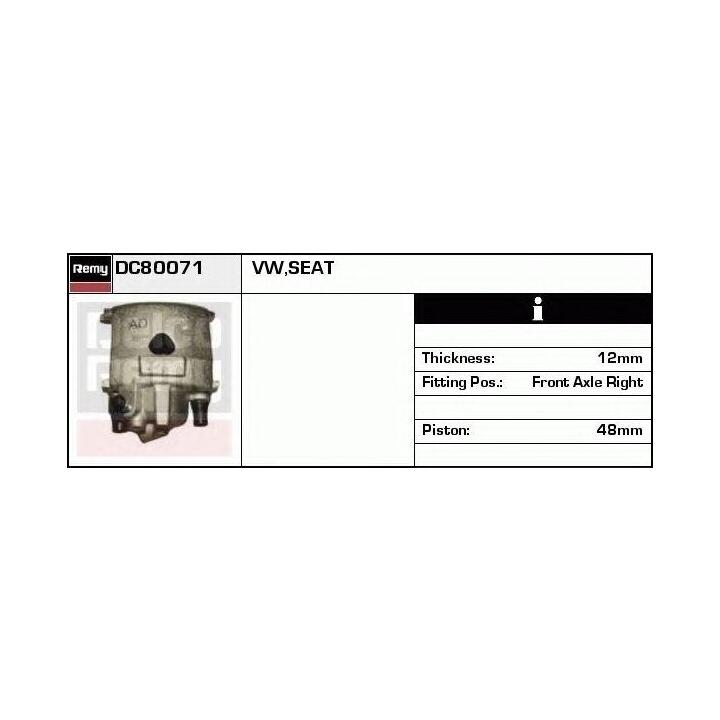

| DELCO REMY | DC80071 |
| DRI | 3251000 |
| ELSTOCK | 83-0501 |
| ERA Benelux | BC60071 |
| FTE | RX489806A0, RX4898183A0 |
| HELLA | 8AC355387-061 |

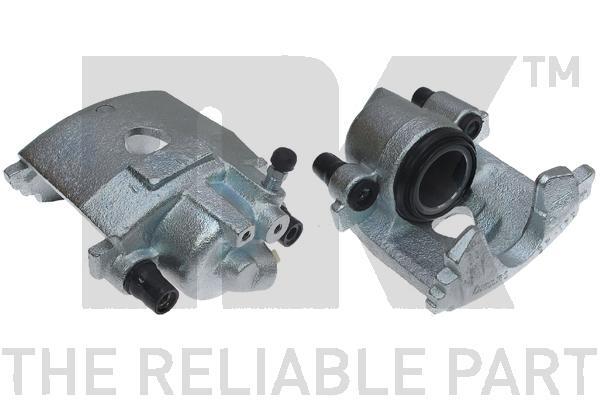

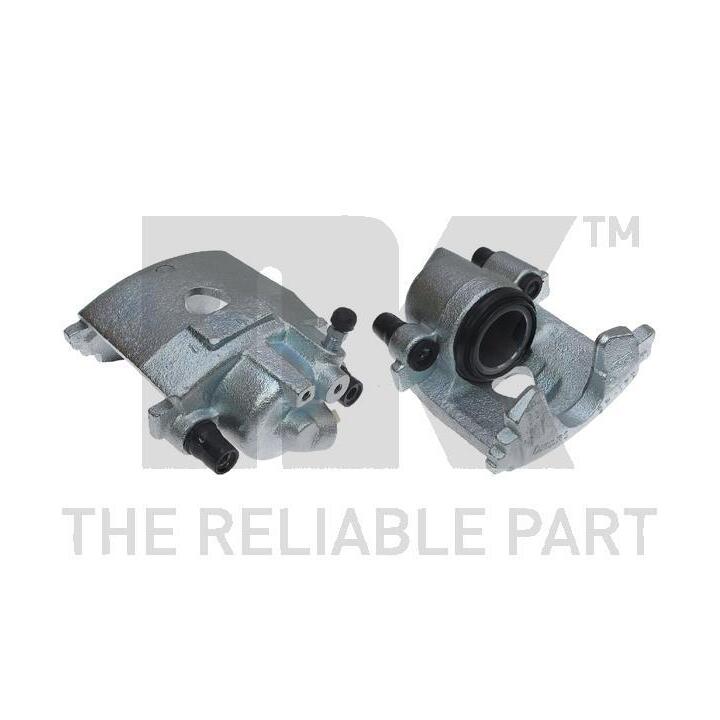

| NK | 2147120 |
| RE-EX | 506-01503 |
| SHAFTEC | BC9368R |
| TMI | BR001503 |

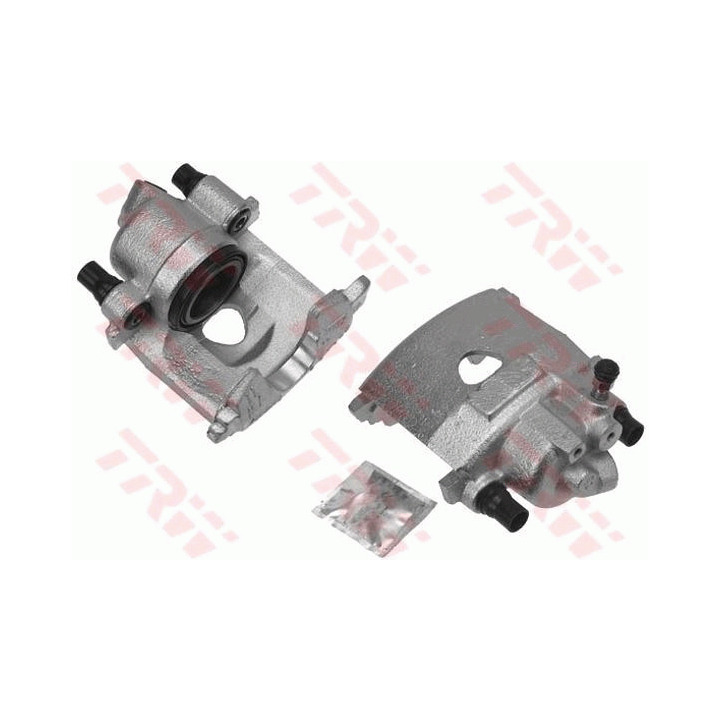

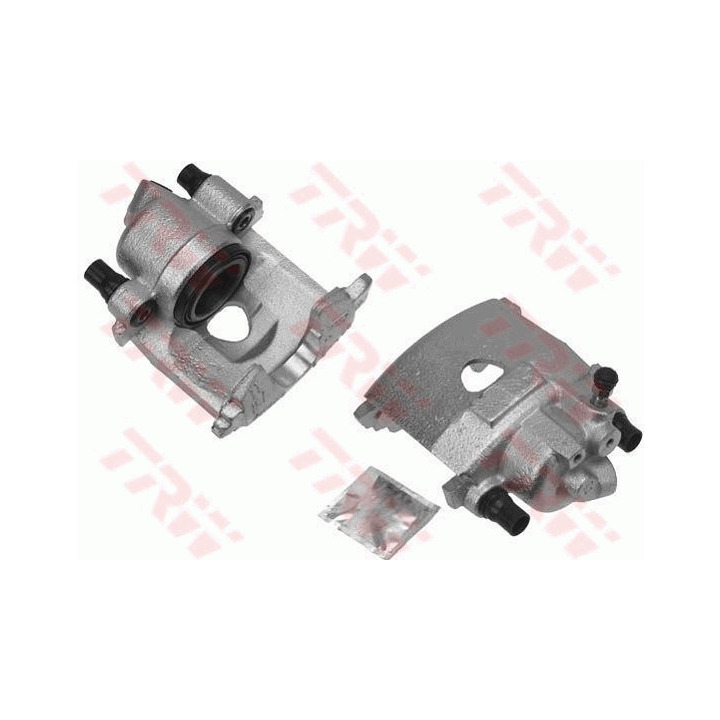

| TRW | BHV121, BHV121E |
| VAG | 171615124, 357615124 |
| VW | 171615124, 357615124 |
| sbs | 13012147120 |
Compatible Vehicles
| Make | Model | Production Period | KW | HP | CCM |
|---|---|---|---|---|---|
| CORDOBA (6K1, 6K2) 1.6 i | 1993-02 – 2002-10 | 55 | 75 | 1598 | |
| CORDOBA (6K1, 6K2) 1.8 i | 1993-02 – 2002-09 | 66 | 90 | 1781 | |
| CORDOBA (6K1, 6K2) 1.9 D | 1993-02 – 1996-08 | 50 | 68 | 1896 | |
| IBIZA II (6K1) 1.4 i | 1993-09 – 2002-02 | 44 | 60 | 1389 | |
| IBIZA II (6K1) 1.4 i 16V | 1997-06 – 2002-02 | 74 | 101 | 1390 | |
| IBIZA II (6K1) 1.6 i | 1993-03 – 2002-02 | 55 | 75 | 1598 | |
| IBIZA II (6K1) 1.6 i | 1996-04 – 2002-02 | 74 | 101 | 1595 | |
| IBIZA II (6K1) 1.8 i | 1993-03 – 1999-08 | 66 | 90 | 1781 | |
| IBIZA II (6K1) 1.9 TD | 1993-03 – 1996-08 | 55 | 75 | 1896 | |
| IBIZA II (6K1) 1.9 TDI | 1997-02 – 2002-02 | 81 | 110 | 1896 | |
| GOLF III (1H1) 1.8 Syncro (1HX1) | 1993-01 – 1997-08 | 66 | 90 | 1781 | |
| GOLF III (1H1) 1.9 TD, GTD | 1991-11 – 1997-08 | 55 | 75 | 1896 | |
| GOLF II (19E, 1G1) 1.6 D | 1983-08 – 1991-10 | 37 | 1588 | ||
| GOLF II Van (19E, 1G1) 1.6 D | 1983-08 – 1991-07 | 40 | 1588 | ||
| GOLF III Van (1H1) 1.8 | 1991-08 – 1997-12 | 66 | 1781 | ||
| GOLF III (1H1) 1.9 TDI Syncro (1HX1) | 1995-08 – 1997-12 | 66 | 90 | 1896 | |
| GOLF II (19E, 1G1) 1.8 GTI | 1985-01 – 1985-07 | 77 | 105 | 1781 | |
| GOLF III (1H1) 1.4 | 1991-11 – 1997-08 | 40 | 55 | 1390 | |
| PASSAT B2 (32B) 1.8 | 1983-12 – 1988-03 | 82 | 112 | 1781 | |
| PASSAT B3/B4 (3A2, 35I) 1.6 | 1988-04 – 1992-07 | 55 | 75 | 1595 | |
| PASSAT B2 Saloon (32B) 1.6 | 1984-08 – 1988-03 | 55 | 75 | 1595 | |
| PASSAT B2 Saloon (32B) 1.6 | 1985-01 – 1988-03 | 53 | 72 | 1595 | |
| PASSAT B2 Saloon (32B) 1.6 TD | 1985-01 – 1988-03 | 51 | 70 | 1588 | |
| PASSAT B2 Saloon (32B) 1.8 | 1985-01 – 1988-03 | 66 | 90 | 1781 | |
| PASSAT B2 Variant (33B) 1.6 | 1986-08 – 1988-03 | 51 | 70 | 1595 | |
| PASSAT B2 Variant (33B) 1.6 | 1986-02 – 1988-03 | 53 | 72 | 1595 | |
| PASSAT B2 Variant (33B) 1.6 | 1980-08 – 1983-07 | 55 | 75 | 1588 | |
| PASSAT B2 (32B) 1.6 | 1986-02 – 1988-03 | 53 | 72 | 1595 | |
| PASSAT B2 Variant (33B) 1.8 | 1986-05 – 1988-03 | 64 | 87 | 1781 | |
| PASSAT B2 Variant (33B) 1.8 | 1983-12 – 1988-03 | 82 | 112 | 1781 | |
| SCIROCCO (53B) 1.3 | 1983-08 – 1984-07 | 40 | 55 | 1272 | |
| VENTO (1H2) 1.8 | 1991-11 – 1998-09 | 55 | 75 | 1781 | |
| VENTO (1H2) 1.8 | 1991-11 – 1998-09 | 66 | 90 | 1781 | |
| VENTO (1H2) 1.9 D | 1991-11 – 1998-09 | 48 | 65 | 1896 |
