Description

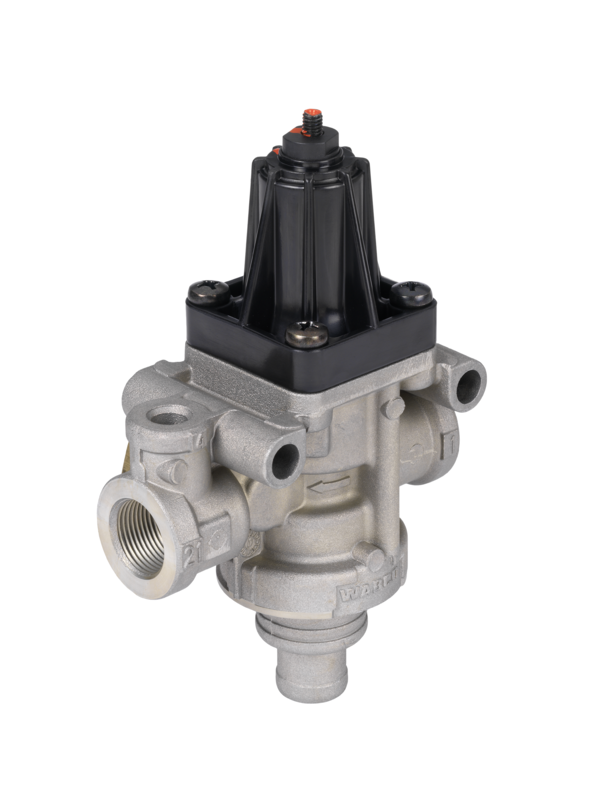

Unloader
Part Number: 9753030400
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.3209 |
| Cut-out pressure | 7.3 bar |
| Max. operating pressure | 25.0 bar |
| Mounting | 2x Ø 8.8 mm |
| Opening pressure | 12.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 3 | Union Ø 20 mm |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With one way valve |
| Version | Without tire inflating valve |
| GTIN | 04057875305316 |
| Size (mm x mm x mm) | 175 x 111 x 68 |
| UPC | 193133450528 |
| Weight (kg) | 0.729 |
| Weight (lb) | 1.6072 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | T103977 |
| CASE IH | 820199060 |
| DAF | 0513986 |
| DAF | 100587 |
| DAF | 105101 |
| DAF | 302239 |
| DAF | 513986 |
| EVOBUS | A0034316006 |
| FAUN | 1612011 |
| FAUN | 1614594 |
| IRISBUS | 500005623 |
| IVECO | 03410537 |
| IVECO | 03410538 |
| IVECO | 03429296 |
| IVECO | 500005623 |
| KENWORTH | S9753030400 |
| LEYLAND DAF | BBU5214 |
| MAN | 81521016022 |
| MAN | 81521016073 |
| MAN | 81810117110 |
| MERCEDES-BENZ | 0004311806 |
| MERCEDES-BENZ | 0014312906 |
| MERCEDES-BENZ | A0034316006 |
| MERCEDES-BENZ | 0034316006 |
| MERITOR | S9753030400 |
| NEOPLAN | 1102441544303 |
| PETERBILT | S9753030400 |
| SCANIA | 2090399 |
