Description

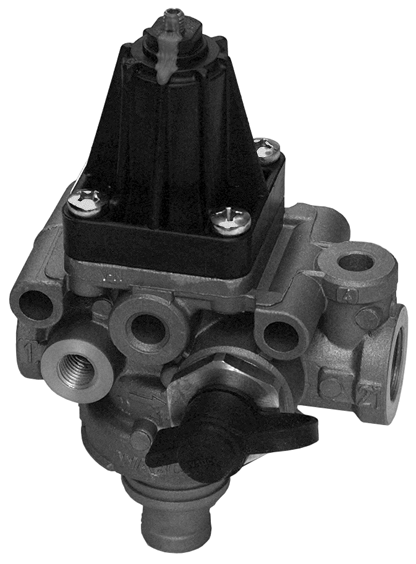

Unloader
Part Number: 9753035800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.7101 |
| Cut-out pressure | 14.0 bar |
| Max. operating pressure | 25.0 bar |
| Mounting | 2x Ø 8.8 mm |
| Opening pressure | 20 bar |
| Operational range | 1.0+1.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Union Ø 20 mm |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With one way valve |
| Version | With tire inflating valve |
| GTIN | 04057875305903 |
| Size (mm x mm x mm) | 174 x 108 x 91 |
| UPC | 193133379782 |
| Weight (kg) | 0.753 |
| Weight (lb) | 1.6601 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DEUTZ | 04346865 |
| IVECO | 04313406 |
| JOHN DEERE | AL68586 |
