Description

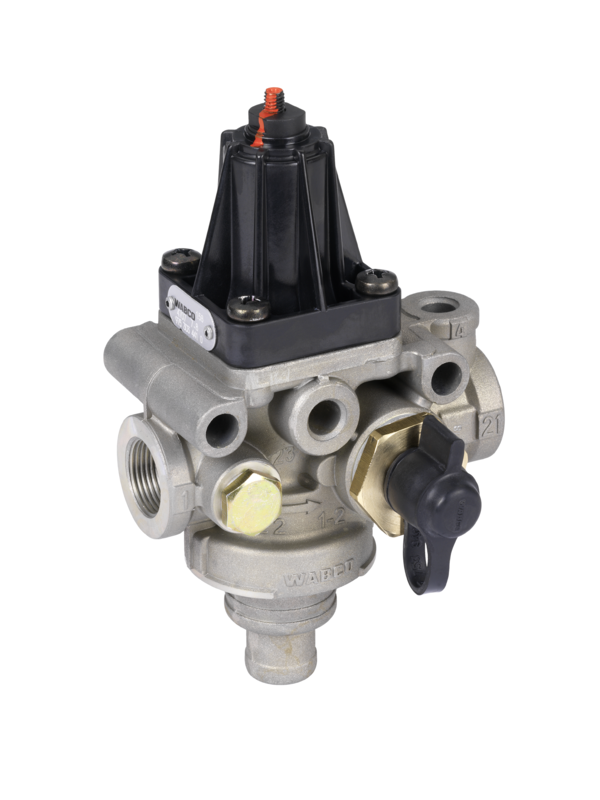

Unloader
Part Number: 9753034410
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.6806 |
| Cut-out pressure | 7.8 bar |
| Max. operating pressure | 25.0 bar |
| Mounting | 2x Ø 8.8 mm |
| Opening pressure | 12.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Union Ø 20 mm |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With one way valve |
| Version | With tire inflating valve |
| GTIN | 04057875305569 |
| Size (mm x mm x mm) | 171 x 108 x 91 |
| UPC | 193133450597 |
| Weight (kg) | 0.748 |
| Weight (lb) | 1.65 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DEUTZ | 04398756 |
| DEUTZ | 4398756 |
| FREIGHTLINER | TDAS9753034410 |
| IVECO | 04784766 |
| IVECO | 04804764 |
| IVECO | 04831983 |
| IVECO | 04842612 |
| IVECO | 42007712 |
| IVECO | 42008234 |
| IVECO | 42009103 |
| IVECO | 42021855 |
| IVECO | 42085761 |
| IVECO | 4804764 |
| IVECO | 04784776 |
| KENWORTH | S975-303-441-0 |
| LIEBHERR | 5026264 |
| LIEBHERR | 5029655 |
| LIEBHERR | 502626408 |
| MERITOR | S9753034410 |
| PETERBILT | S975-303-441-0 |
