Description

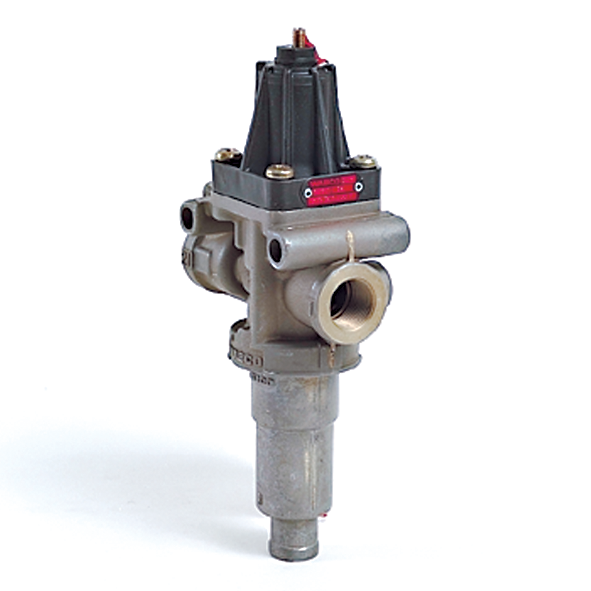

Unloader
Part Number: 9753030890
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.6117 |
| Comments | Alternative: cut-out pressure needs adjusting |
| Cut-out pressure | 9.5 bar |
| Max. operating pressure | 25.0 bar |
| Mounting | 2x Ø 8.8 mm |
| Opening pressure | 14 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 3 | Union Ø 20 mm |
| Port thread 4 | M12 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With one way valve |
| Version | Without tire inflating valve |
| GTIN | 7895851024458 |
| Size (mm x mm x mm) | 242 x 111 x 60 |
| UPC | 193133379522 |
| Weight (kg) | 0.794 |
| Weight (lb) | 1.7505 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB9753030890 |
| DAF | 1505482 |
| PACCAR | 1505482 |
| SCANIA | 469239 |
