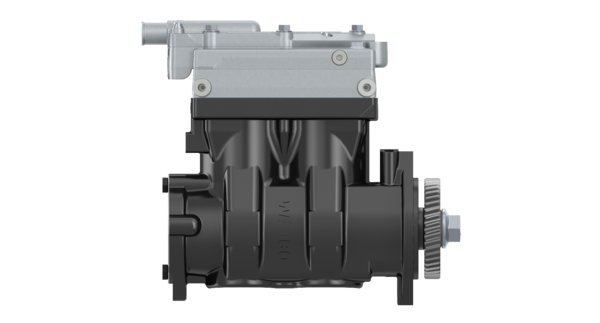

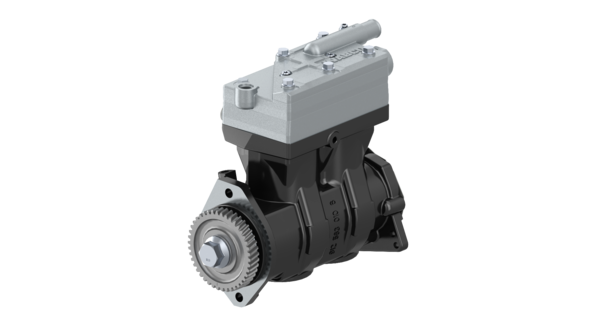

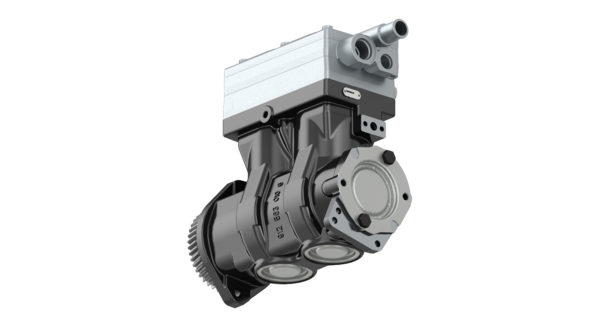

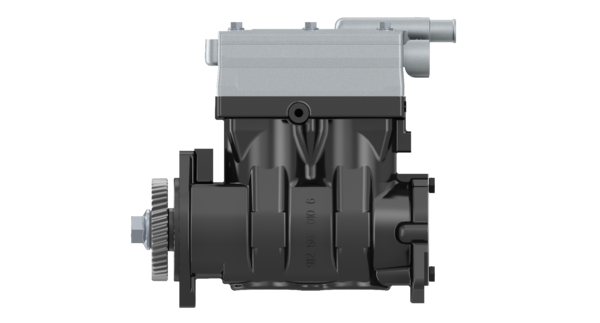

Twin-Cyl.Compressor 636cc,flangemounted –(with gear)
Part Number: 9125630010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 13.702 |
| Cooling | Water |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | Ø 25 mm |
| Port thread 2 | M27 x 2.0 |
| Port thread 4 | M10 x 1.0 |
| Port thread 9 | 3/4″ -16 UNF |
| Port thread 9.1 | 3/4″ – 16 UNF |
| Port thread 9.2 | 3/4″ -16 UNF |
| Product category | Device |
| Swept volume (cm³) | 636 cm3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Twin Cylinder |
| GTIN | 04057875275398 |
| Size (mm x mm x mm) | 310 x 340 x 130 |
| UPC | 193133346081 |
| Weight (kg) | 21.5 |
| Weight (lb) | 47.3993 |
