Description

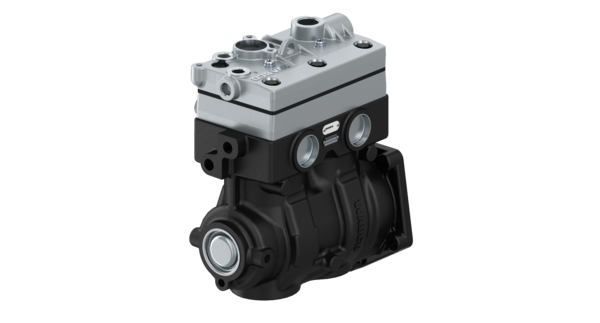

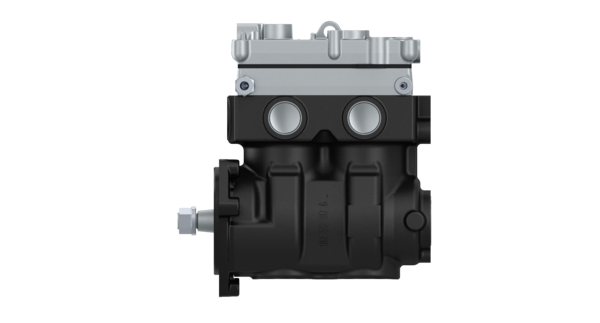

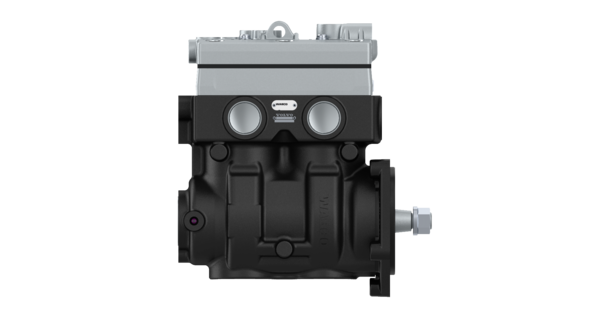

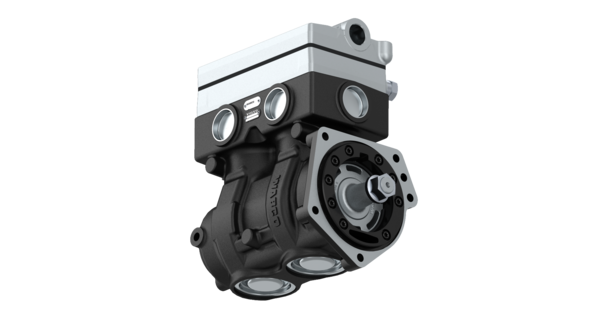

Twin-Cyl.Compressor 636cc,flangemounted
Part Number: 9125120160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 20.064 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 14.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | Ø 34.9 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 8.1 | M12 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 636 cm3 |
| Technical specification | OE specification |
| Type | Twin Cylinder |
| GTIN | 04057875274445 |
| Size (mm x mm x mm) | 190 x 320 x 330 |
| UPC | 193133344919 |
| Weight (kg) | 20.8 |
| Weight (lb) | 45.8561 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VOLVO | 21521357 |
