Description

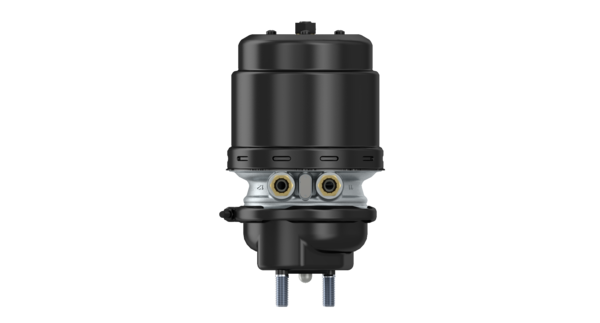

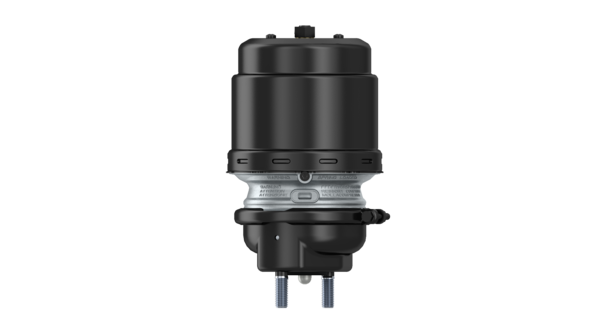

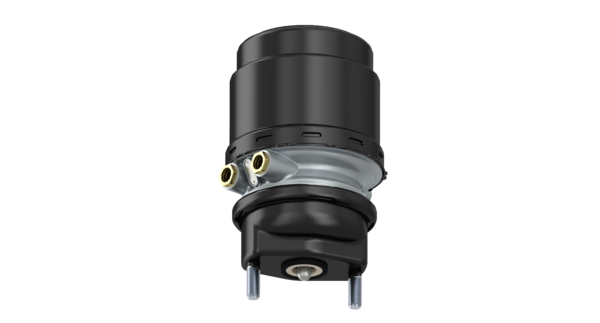

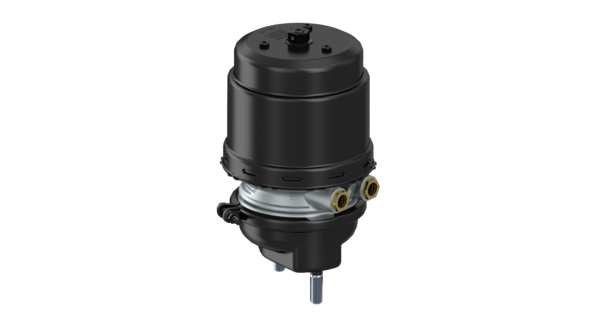

Tristop-Cylinder Disc G-14/24 HFL3
Part Number: 9254880010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 15.107 |
| Comments | With VOSS 232 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Opposite | 925 488 000 0 |
| Output force m | 6920 N |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 6.1 bar |
| Return-spring force | 220 N |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 277.0 mm |
| Type | 14/24 HFL3 |
| Type of operation | Disc |
| GTIN | 04057875285038 |
| Size (mm x mm x mm) | 408 x 187 x 198 |
| UPC | 193133356417 |
| Weight (kg) | 8.961 |
| Weight (lb) | 19.756 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0204201418 |
| MERCEDES-BENZ | A0204201418 |
