Description

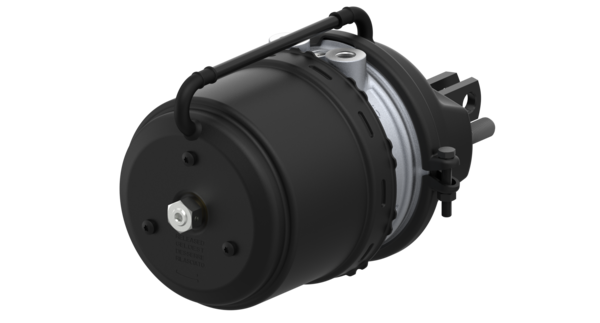

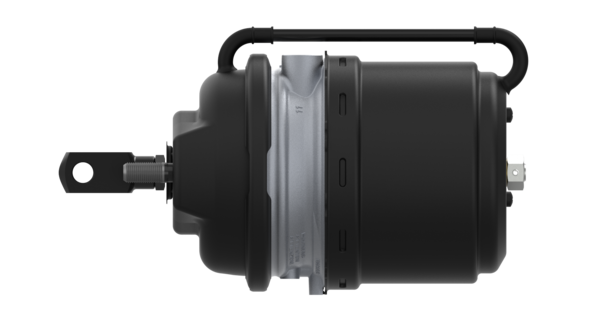

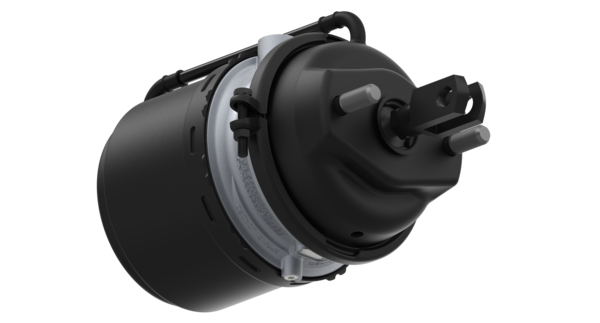

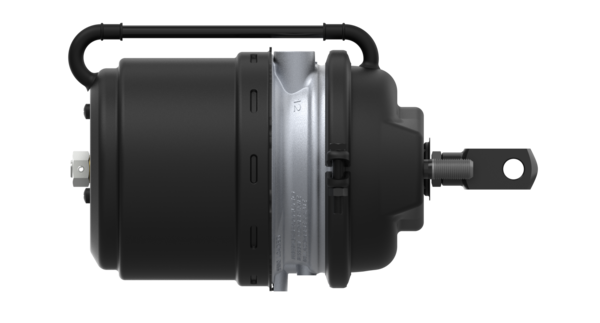

Tristop-Cylinder Cam G-24/24 F
Part Number: 9254310320
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 38.5 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 0 |
| Clevis pins | 16 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Output force 3 | 8800 N |
| Output force m | 7600 N |
| Port thread 11 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 70 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 4.9 bar |
| Return-spring force | 250 N |
| Stroke | 65/65 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 275.0 mm |
| Type | 24/24 |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Screwed: 895 802 090 4 |
| GTIN | 04057875280620 |
| UPC | 193133352006 |
| Weight (kg) | 0 |
| Weight (lb) | 0 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1505334 |
