Description

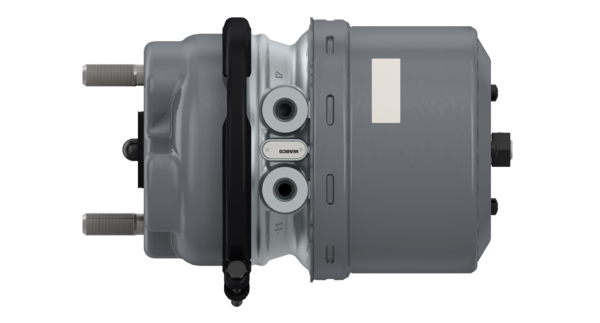

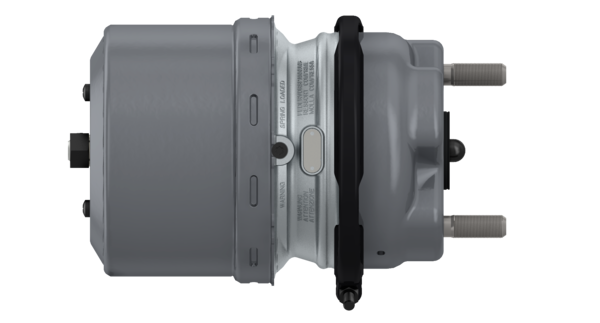

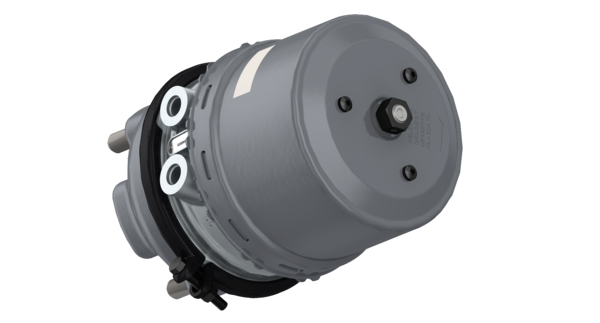

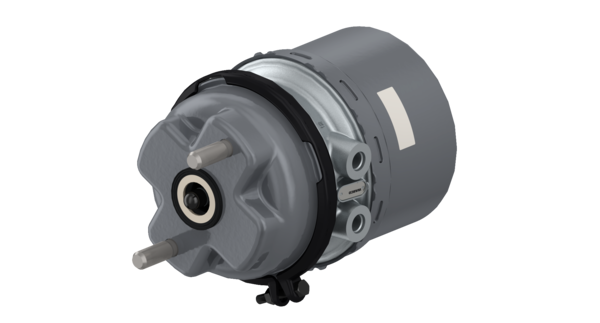

Tristop Cylinder 24/24
Part Number: 9254810340
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 13.3916 |
| Cooling | Air |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Nominal diameter | 8.5 mm |
| Output force | 8300 N |
| Port thread 11 | M16 x 1.5 JED – 464-0 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.3 bar |
| Return-spring force | 245 N |
| Stroke | 65/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 258.0 mm |
| Type | 24/24 IBV |
| Type of operation | Disc |
| Yoke | No |
| GTIN | 04057875282983 |
| Size (mm x mm x mm) | 335 x 205 x 195 |
| UPC | 193133354437 |
| Weight (kg) | 8.156 |
| Weight (lb) | 17.981 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VOLVO | 20466072 |
| VOLVO | 2052203 |
| VOLVO | 22273775 |
