Description

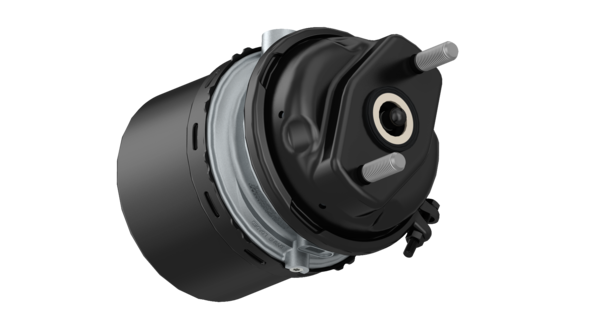

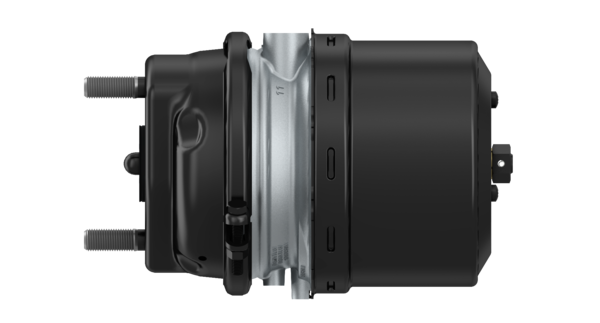

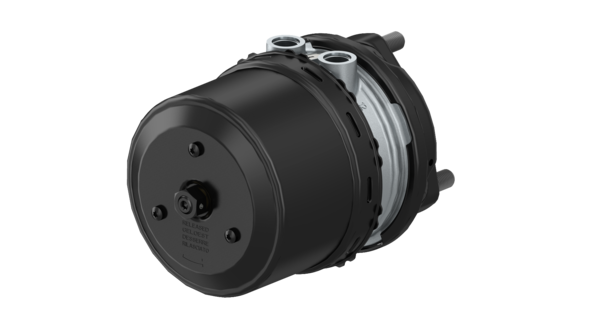

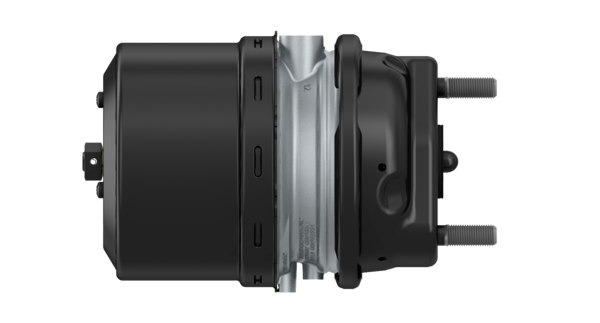

Tristop Cylinder 24/24
Part Number: 9254811600
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 14.822 |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Opposite | 925 481 161 0 |
| Output force m | 11950 N |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.1 bar |
| Return-spring force | 220 N |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 259.0 mm |
| Type | 24/24 |
| Type of operation | Disc |
| GTIN | 04057875283355 |
| Size (mm x mm x mm) | 386 x 192 x 200 |
| UPC | 193133352495 |
| Weight (kg) | 8.172 |
| Weight (lb) | 18.016 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1685994 |
| DAF | 136642 |
