Description

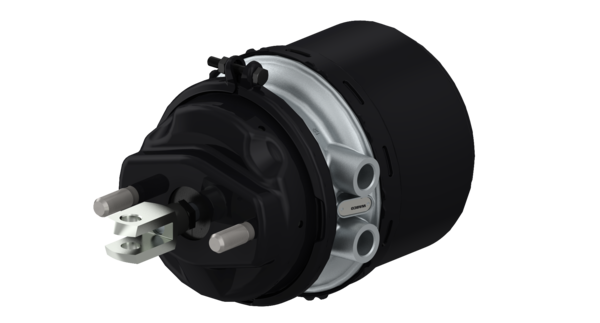

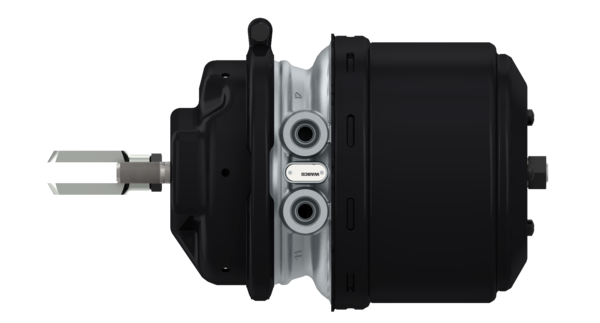

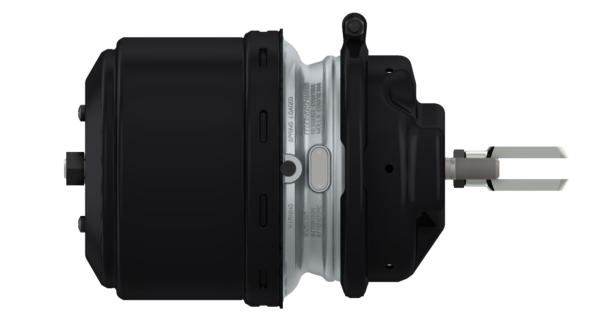

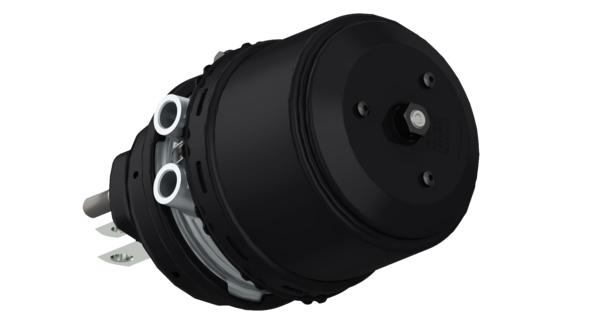

Tristop Brake Actuator 24/30
Part Number: 9254912200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 39.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 25.34 |
| Clevis pins | 16 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Output force m | 14700 N |
| Port thread 11 | M22 x 1.5 JED – 152 |
| Product category | Device |
| Push-rod length | 70 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 5.8 bar |
| Return-spring force | 270 N |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 274.0 mm |
| Type | 24/30 |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Screwed |
| GTIN | 04057875323525 |
| Size (mm x mm x mm) | 440 x 240 x 240 |
| UPC | 193133414438 |
| Weight (kg) | 10.14 |
| Weight (lb) | 22.35 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2413457 |
