Description

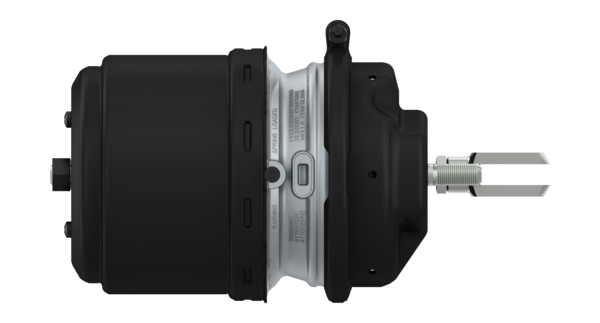

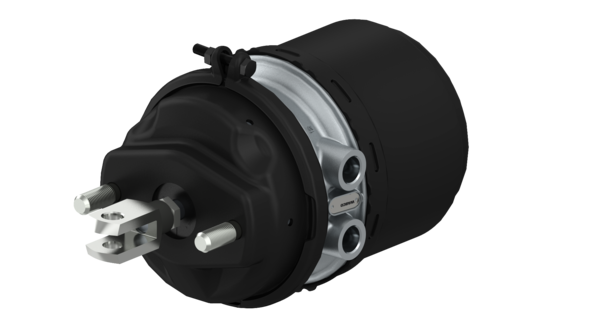

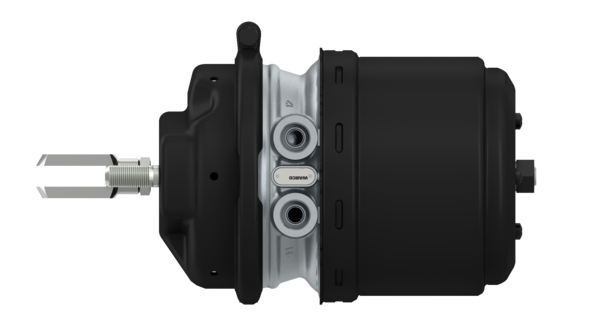

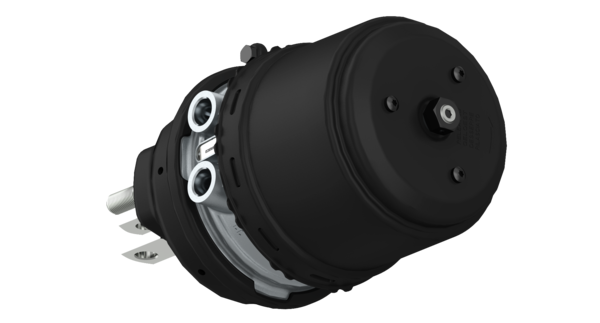

Tristop Brake Actuator 24/24
Part Number: 9254912500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 39.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 18 |
| Clevis pins | 16 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Output force m | 11900 N |
| Port thread 11 | M22 x 1.5 JED – 152 |
| Product category | Device |
| Push-rod length | 70 mm |
| Push-rod thread | M16 x 1.5 |
| Release pressure | 5.7 bar |
| Return-spring force | 260 N |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 273.0 mm |
| Type | 24/24 |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Screwed |
| GTIN | 04057875322702 |
| Size (mm x mm x mm) | 450 x 200 x 200 |
| UPC | 193133414735 |
| Weight (kg) | 8.882 |
| Weight (lb) | 19.58 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2530911 |
