Description

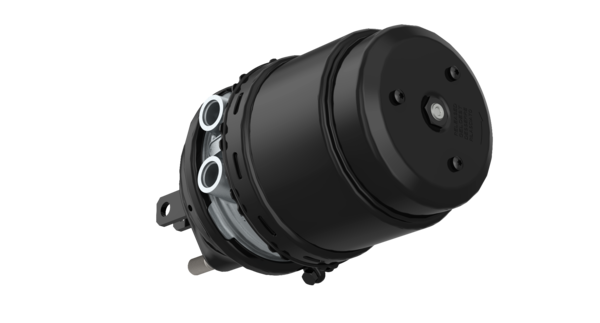

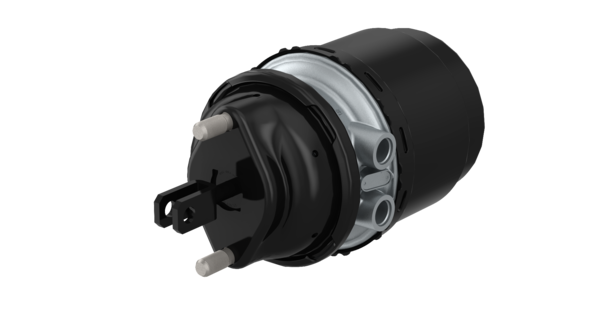

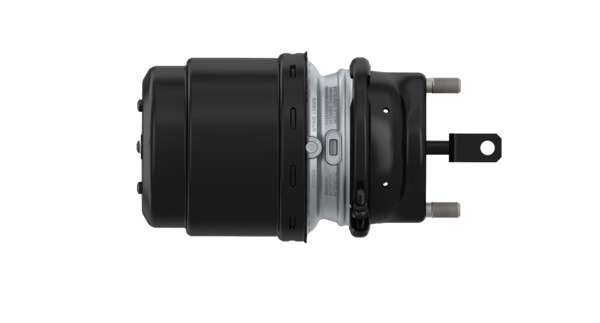

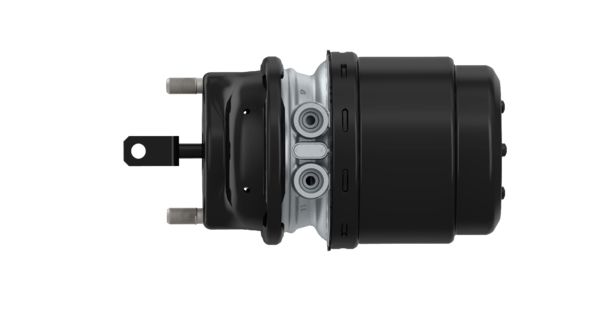

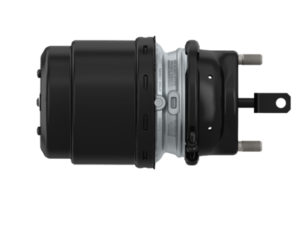

Tristop Brake Actuator 20/24
Part Number: 9254900530
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 33.5 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 17.7393 |
| Clevis pins | 14 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Output force m | 10100 N |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Product category | Device |
| Push-rod length | 60 mm |
| Release pressure | 6.4 bar |
| Return-spring force | 260 N |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 290.0 mm |
| Type | 20/24 HFL3 |
| Type of operation | Cam |
| Version | With boot |
| Yoke | Without |
| GTIN | 04057875285519 |
| Size (mm x mm x mm) | 434 x 214 x 191 |
| UPC | 193133414346 |
| Weight (kg) | 9.45 |
| Weight (lb) | 20.834 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A 958 420 15 18 |
| MERCEDES-BENZ | A9584201518 |
