Description

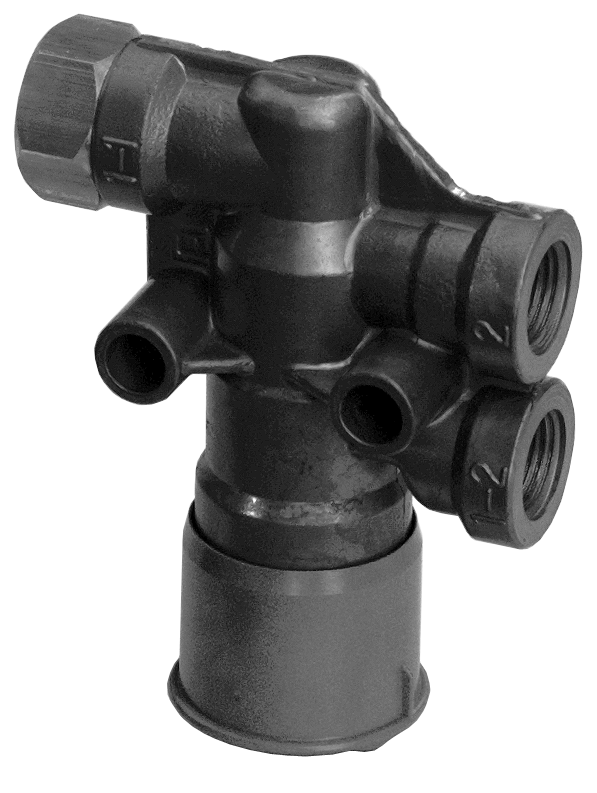

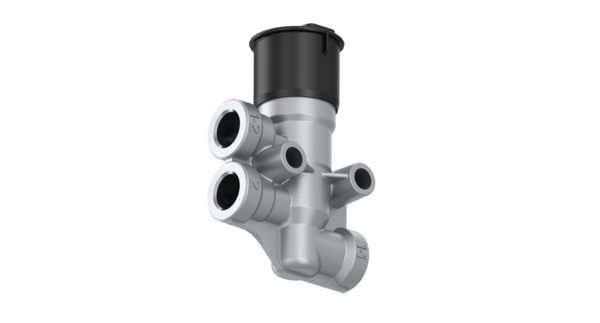

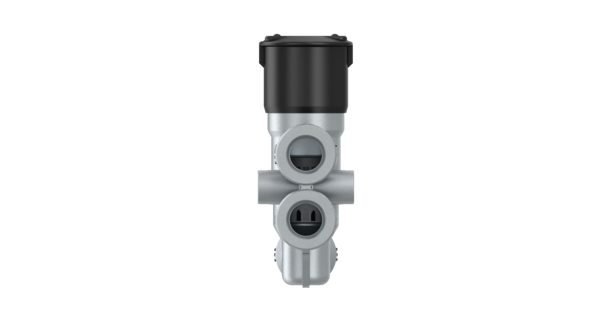

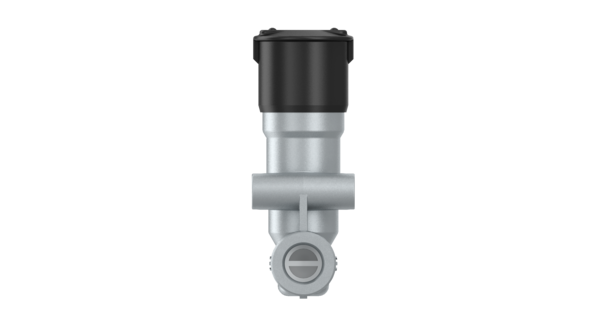

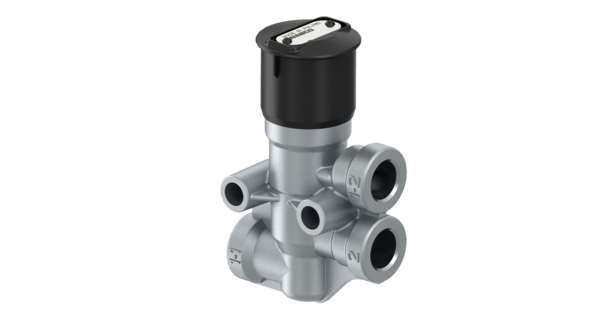

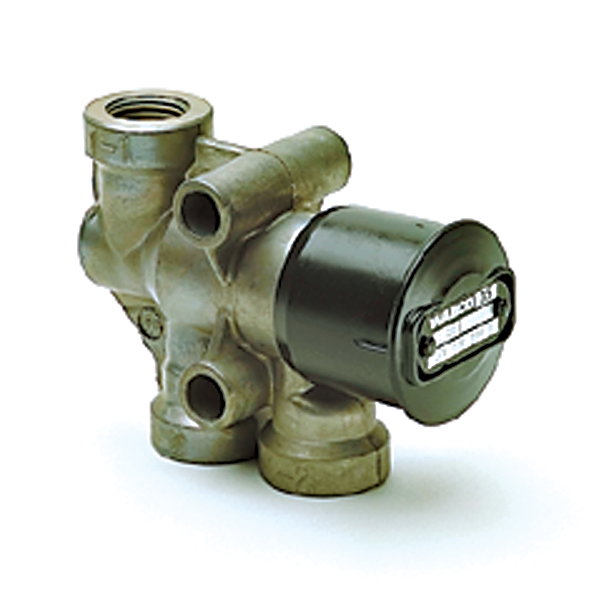

Trailer Release Valve
Part Number: 9630060010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Black/Black |
| Calculated Volume (dm³) | 0.2354 |
| Color | Knob – Black |
| Comments | With flange |
| Distance between holes | 44 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 8.5 mm – Flange |
| Port thread 1-1 | M22 x1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | M16 x1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| GTIN | 7895851079946 |
| Size (mm x mm x mm) | 88.5 x 66.5 x 40 |
| UPC | 193133449416 |
| Weight (kg) | 0.15 |
| Weight (lb) | 0.331 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | 605323000 |
| DAF | 1325331 |
| DAMBROZ | 997904050 |
| ERF | 1065271 |
| FAYMONVILLE | 01020 |
| FELDBINDER | 006712 |
| FRUEHAUF | AFA4271008 |
| FRUEHAUF | CF351221AJA09501 |
| FRUEHAUF | ASX0694001AFA0775 |
| FRUEHAUF | M059411 |
| GOLDHOFER | 152092 |
| HENDRICKSON | 9630060010 |
| IVECO | 08193547 |
| IVECO | 8193547 |
| KEMPF | 2102005 |
| KENWORTH | S963-006-001-0 |
| KRONE | 945021 |
| KRONE | 500945021 |
| LANGENDORF | 1133255 |
| LECITRAILER | 4110241 |
| LEYLAND DAF | FBU3268 |
| LOHR | A05020211 |
| MACK | 6300-9630060010 |
| MAN | 1065271 |
| MERITOR | S9630060010 |
| NEOPLAN | 07128000 |
| NOOTEBOOM | 308063 |
| NOOTEBOOM | 08054 |
| ORTHAUS | 49501101000 |
| OTOKAR | AIF0772 |
| PETERBILT | S963-006-001-0 |
| RENAULT | 5021170428 |
| SCANIA | 2090268 |
| SCHMITZ CARGOBULL | 053010 |
| SCHMITZ CARGOBULL | 53010 |
| SCHWARZMÜLLER | 9141 |
| TEREX | 32413640 |
| VOLVO | WAB9630060010 |
| ZORZI | 1013065 |
