Description

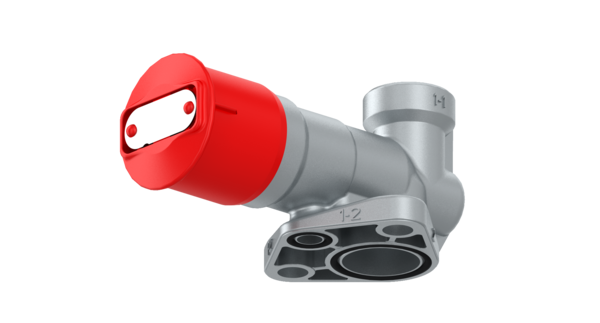

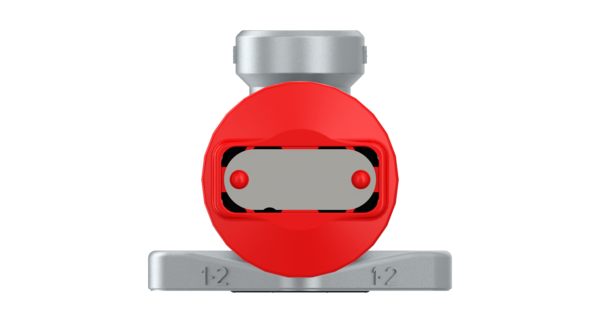

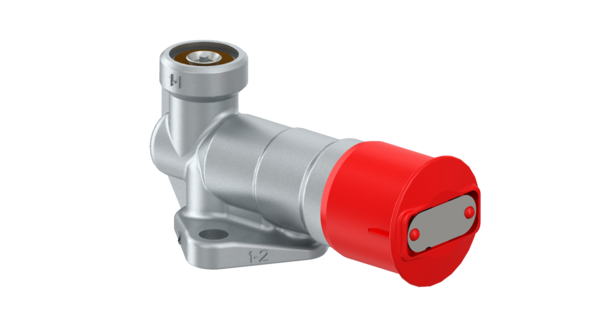

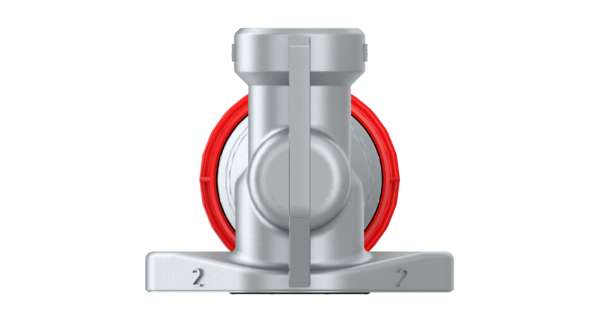

Trailer Release Valve
Part Number: 9630010160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | For diaphragm and single part |
| Calculated Volume (dm³) | 0.275 |
| Color | Knob – Red |
| Comments | With non-return valve |
| Distance between holes | 86 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2 x M8 – with flange |
| Port thread 1-2 | Ø 7.0 mm |
| Port thread 2 | Ø 21.5 mm |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Double Release valve |
| GTIN | 04057875298533 |
| Size (mm x mm x mm) | 89 x 51.5 x 60 |
| UPC | 193133371922 |
| Weight (kg) | 0.127 |
| Weight (lb) | 0.28 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519448 |
| SCHMITZ CARGOBULL | 1060772 |
