Description

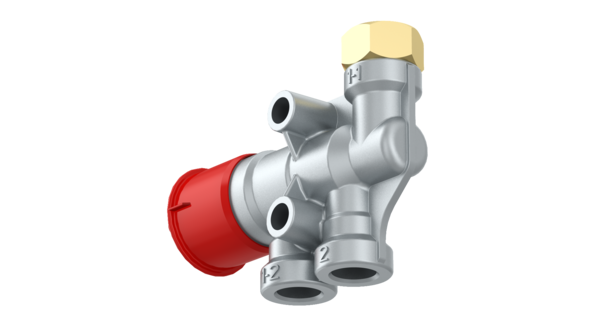

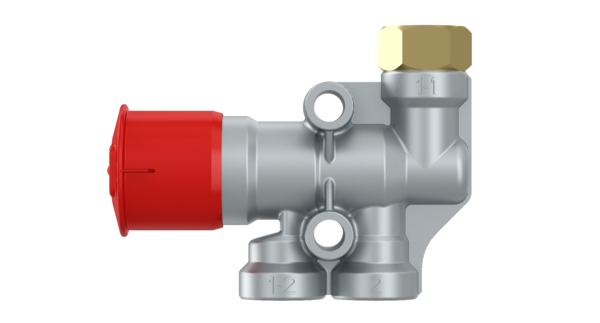

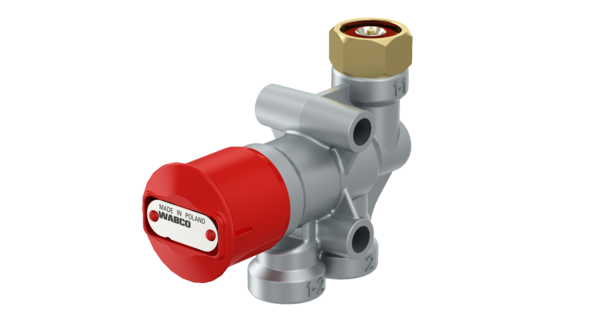

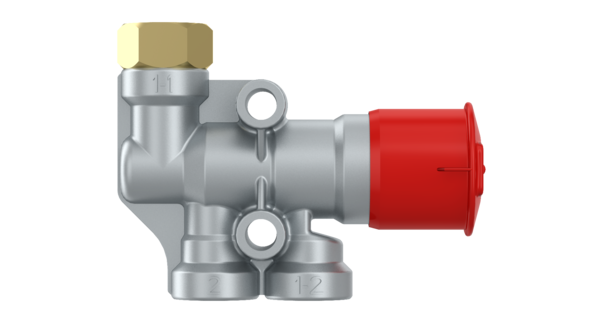

Trailer Release Valve
Part Number: 9630060030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2814 |
| Color | Knob – Red |
| Comments | with flange |
| Distance between holes | 37 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 8.5 mm |
| Nominal diameter | 6.0 mm |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| GTIN | 04057875298557 |
| Size (mm x mm x mm) | 88.5 x 79.5 x 40 |
| UPC | 193133449423 |
| Weight (kg) | 0.165 |
| Weight (lb) | 0.364 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 867882 |
| DAF | 0867882 |
| FELDBINDER | 010943 |
| FELDBINDER | 205137 |
| FRUEHAUF | M059438 |
| FRUEHAUF | 5360-039 |
| HENDRICKSON | 9630060030 |
| HINO | S44Y0E0010 |
| KENWORTH | S9630060030 |
| KRONE | 5810549 |
| KRONE | 5058105490 |
| LANGENDORF | 1133256 |
| LIEBHERR | 503200201 |
| LOHR | A05020219 |
| MERITOR | S9630060030 |
| NIPPON TREX | 912032-00016 |
| NOOTEBOOM | 1795010 |
| NOOTEBOOM | 0859815 |
| ORTHAUS | 49501101001 |
| PACCAR | 0867882 |
| PETERBILT | S9630060030 |
| SCANIA | 1912350 |
| VOLVO | WA9630060030 |
