Description

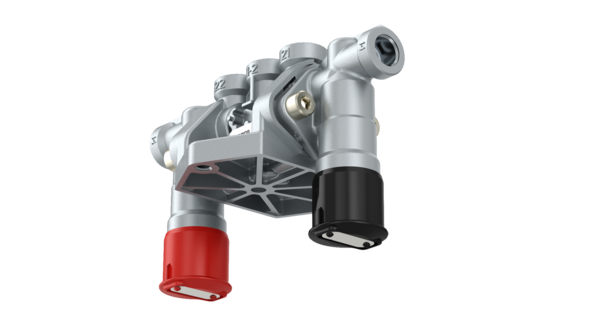

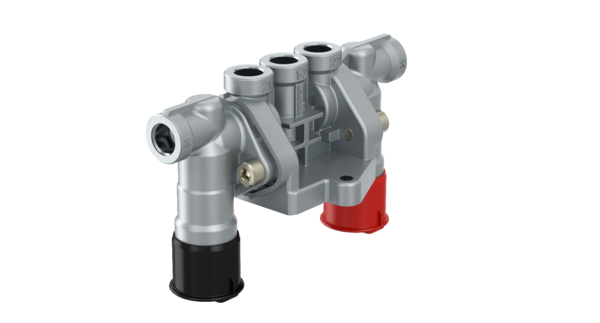

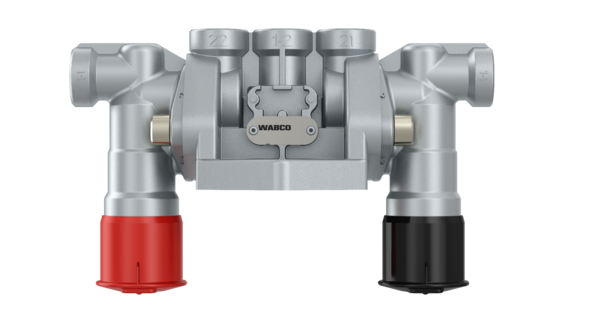

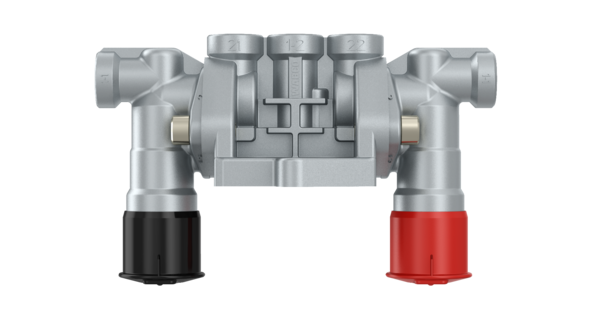

Trailer Release Valve
Part Number: 9630010520
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Black/Red |
| Application | 971 002 |
| Calculated Volume (dm³) | 1.7205 |
| Distance between holes | 86 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 8.5 mm – Flange |
| Port thread 1-1 | M16 x 1.5 |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | Ø 21.5 mm |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| GTIN | 04057875298519 |
| Size (mm x mm x mm) | 178.5 x 94.5 x 102 |
| UPC | 193133371946 |
| Weight (kg) | 0.618 |
| Weight (lb) | 1.36 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506449 |
| HENDRICKSON | 9630010520 |
| LOHR | 9630010520 |
| MAN | N2509990158 |
| OTOKAR | AIF0944 |
| PACCAR | 0865667 |
| RENAULT | 5021170427 |
| SCANIA | 1935580 |
| SCHMITZ CARGOBULL | 114017 |
| VOLVO | WA9630010520 |
| ZORZI | 1013165 |
