Description

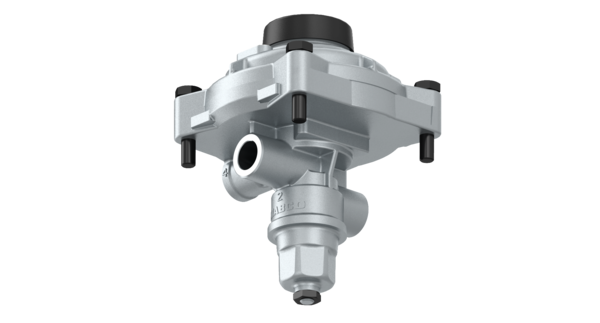

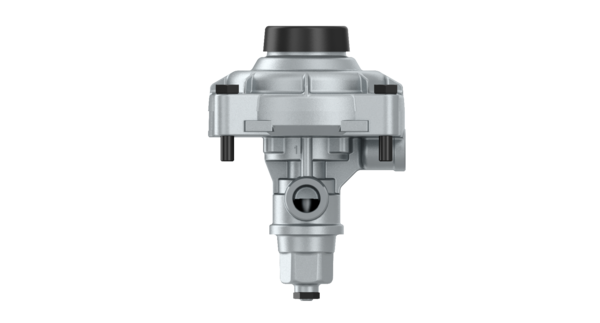

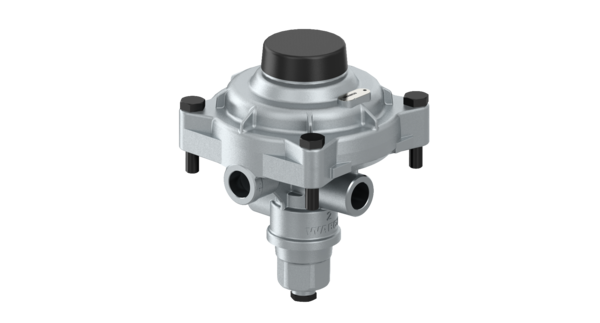

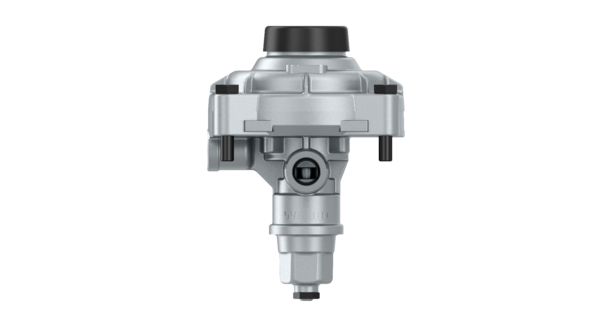

Trailer Control Valve
Part Number: 4712001100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.0435 |
| Distance between bolts | 117×117 mm |
| Max. operating pressure | 8.0 bar |
| Mounting | 4x M10 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | 1 Circuit |
| GTIN | 04057875217466 |
| Size (mm x mm x mm) | 195 x 144 x 144 |
| UPC | 193133442929 |
| Weight (kg) | 2.013 |
| Weight (lb) | 4.4379 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | T101913 |
| DAF | 577677 |
| DAF | 583512 |
| DAF | 1518893 |
| EVOBUS | A0014315205 |
| FENDT | 385880020060 |
| FENDT | F385880020060 |
| FREIGHTLINER | TDAS4712001100 |
| IVECO | 03420702 |
| IVECO | 03435116 |
| KENWORTH | S471-200-110-0 |
| LANGENDORF | 1111569 |
| LIEBHERR | 5029664 |
| LIEBHERR | 502966408 |
| MACK | S4712001100 |
| MACK | 6300-4712001100 |
| MAN | 81523016028 |
| MAN | 81523016044 |
| MAN | 81523016141 |
| MAN | 81523016169 |
| MAN | 88521806204 |
| MAN | 88523016204 |
| MERCEDES-BENZ | 0014310705 |
| MERCEDES-BENZ | 0014314605 |
| MERCEDES-BENZ | 0014315205 |
| MERCEDES-BENZ | A0014315205 |
| MERITOR | S4712001100 |
| PETERBILT | S471-200-110-0 |
| RENAULT | 5000242207 |
| RENAULT | 7700051794B |
| RENAULT | 7700051794 |
| VOLVO | WAB4712001100 |
| VOLVO | 348486 |
