Description

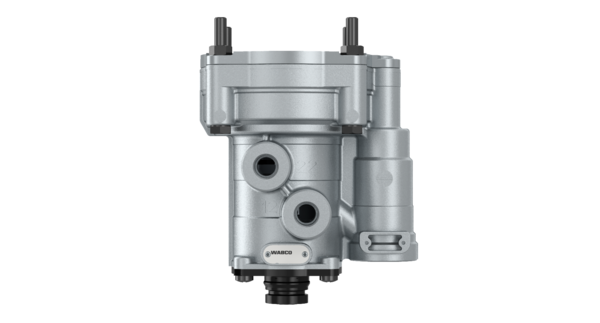

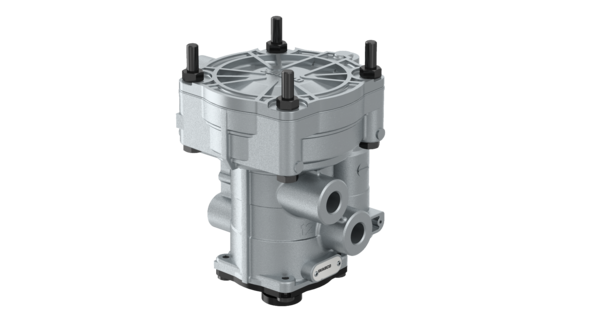

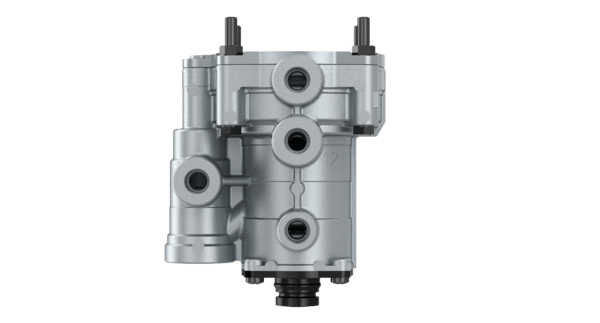

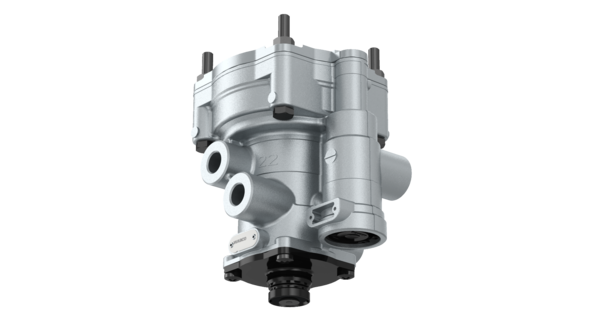

Trailer Control Valve
Part Number: 9730090020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.6895 |
| Distance between bolts | 85×85 mm |
| Exhaust | Snap-on contour |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851023550 |
| Size (mm x mm x mm) | 191 x 141 x 137 |
| UPC | 193133377313 |
| Weight (kg) | 2.134 |
| Weight (lb) | 4.7047 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3454401390 |
| DAEWOO | P34544 01390 |
| DOLL | 7115148 |
| FUSO (MITSUBISHI) | ME737855 |
| HINO | S446101030 |
| HYUNDAI | 597107C000 |
| HYUNDAI | 59710 7C000 |
| HYUNDAI | 59710 7C001 |
| HYUNDAI | 34544 01390 |
| HYUNDAI | 95600 7M001 |
| IVECO | 08163008 |
| IVECO | 8163008 |
| IVECO | 173262 |
| JAC | W20714.00200.01W |
| KRONE | 505821957 |
| LECITRAILER | 4112033 |
| SINOTRUK (CNHTC) | WG9000360180/1 |
| VOLVO | 3173151 |
| VOLVO | 20424431 |
| VOLVO | 8163008 |
| YUTONG | 3514-00048 |
