Description

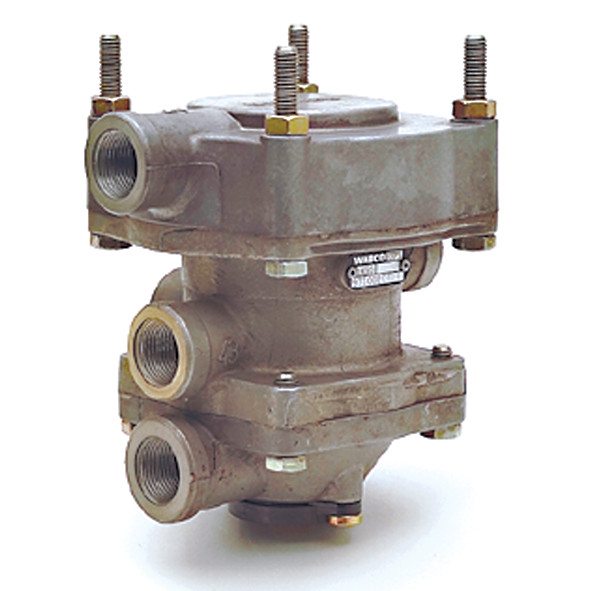

Trailer Control Valve
Part Number: 9730024090
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.5026 |
| Distance between bolts | 85×85 mm |
| Exhaust | Flap |
| Max. operating pressure | 8.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875303008 |
| Size (mm x mm x mm) | 161 x 134 x 116 |
| UPC | 193133376590 |
| Weight (kg) | 1.827 |
| Weight (lb) | 4.0278 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0014317905 |
| IVECO | 0468 4437 |
| LEYLAND DAF | 262108 |
| MAN | 81523016057 |
| MAN | 81523016061 |
| MAN | 81523016062 |
| MAN | 81523016063 |
| MAN | 81523016064 |
| MAN | 81523019064 |
| MERCEDES-BENZ | 0014317905 |
| MERCEDES-BENZ | A0014317905 |
| NEOPLAN | 81523016064 |
| VOLVO | 1589025 |
