Description

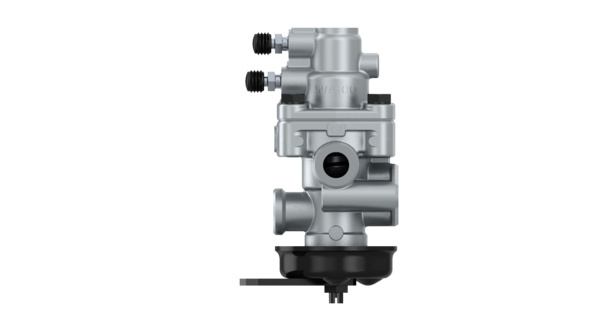

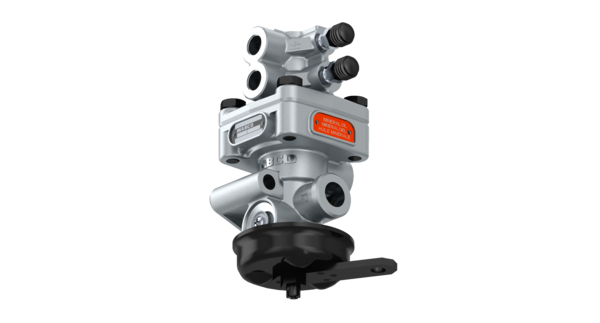

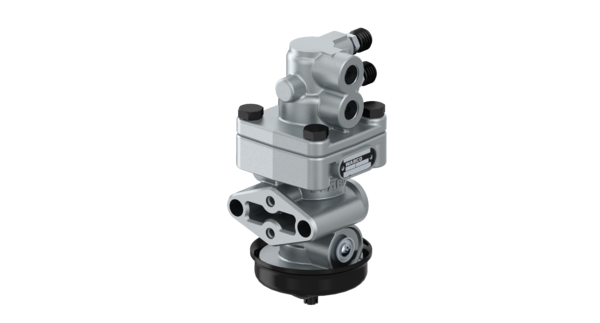

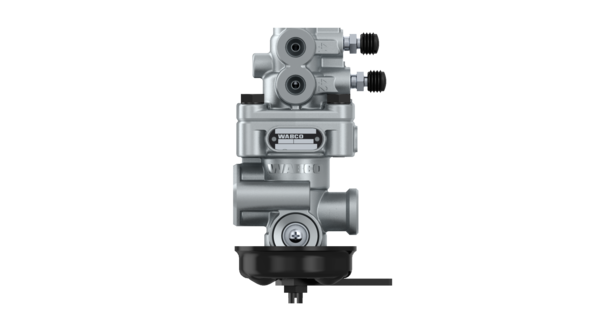

Trailer Control Valve
Part Number: 4700152030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.849 |
| Comments | P41/42 = 12 bar |
| Delivered pressure | 12.0 bar |
| Distance between bolts | 26 mm |
| Exhaust | Flap |
| Max. operating pressure | 7.0/50.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø9.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 41 | DIN 74235 – EL M12 x 1 |
| Port thread 42 | DIN 74235 – EL M12 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | 2 Circuit |
| GTIN | 04057875216667 |
| Size (mm x mm x mm) | 156 x 80 x 68 |
| UPC | 193133442837 |
| Weight (kg) | 0.984 |
| Weight (lb) | 2.1693 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 873404720 |
| DAF | 1518880 |
| DEUTZ | 04414589 |
| DEUTZ | 4414589 |
| JOHN DEERE | AL68580 |
| KENWORTH | S4700152030 |
| MACK | 6300-4700152030 |
| MERITOR | S4700152030 |
| PETERBILT | S4700152030 |
| VOLVO | WAB4700152030 |
