Description

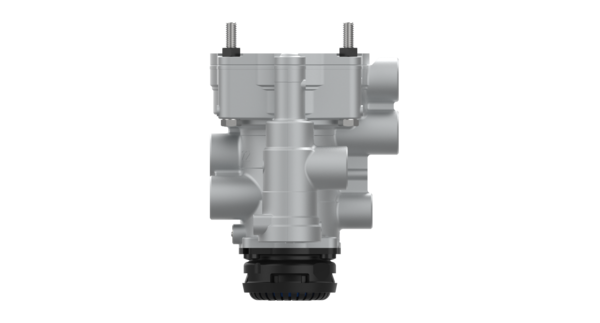

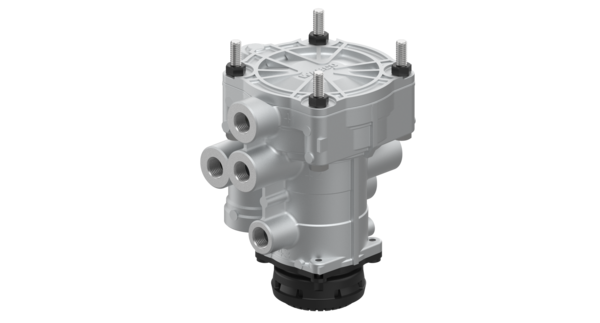

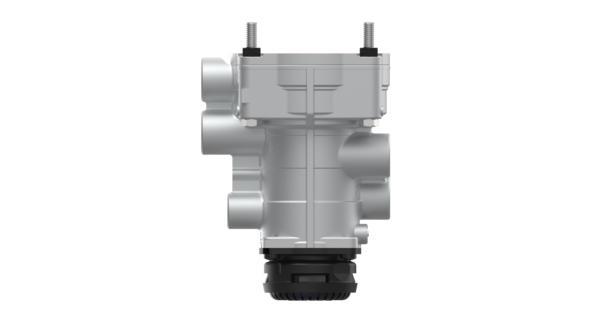

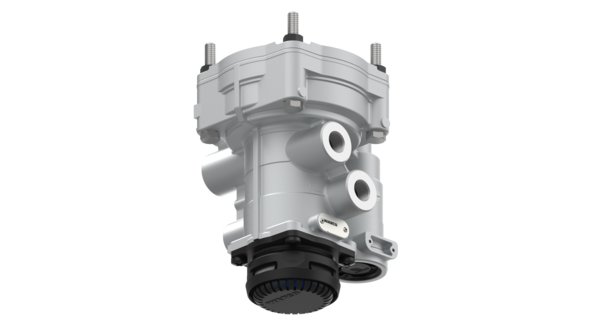

Trailer Control Valve
Part Number: 9730090290
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.038 |
| Distance between bolts | 85×85 mm |
| Exhaust | Silencer |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Predominance | 0.20 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875346326 |
| Size (mm x mm x mm) | 209 x 139 x 139 |
| UPC | 193133377474 |
| Weight (kg) | 2.2 |
| Weight (lb) | 4.85 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | G743880020010 |
