Description

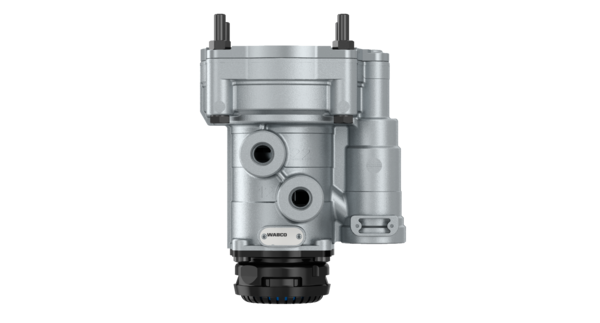

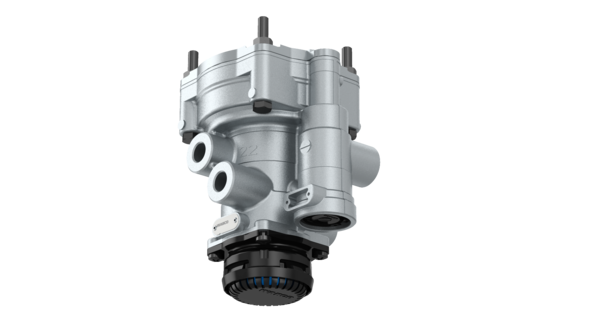

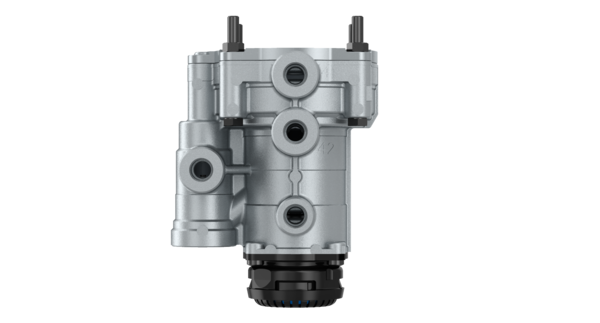

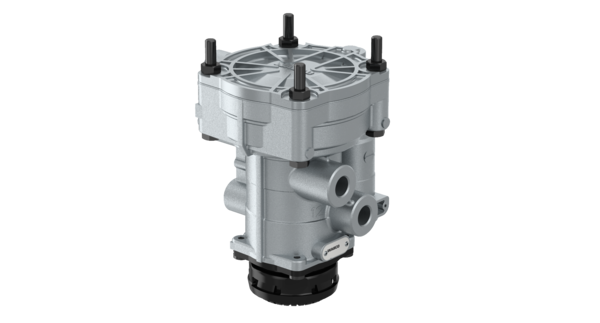

Trailer Control Valve
Part Number: 9730090107
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.0404 |
| Distance between bolts | 85×85 mm |
| Exchange unit for | 9730090100 |
| Exhaust | Silencer |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 x 1.25 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Predominance | 0.40 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875303633 |
| Size (mm x mm x mm) | 202 x 146 x 137 |
| UPC | 193133376842 |
| Weight (kg) | 2.149 |
| Weight (lb) | 4.7377 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1504964R |
| PACCAR | 1504964R |
| RENAULT | 5021170461 |
| SCANIA | 571194 |
| SCANIA | 1935652 |
| SCANIA | 1350096 |
