Description

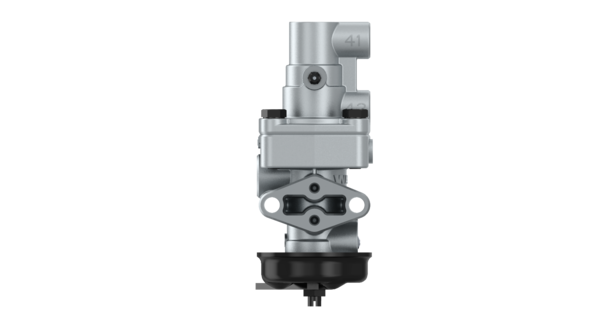

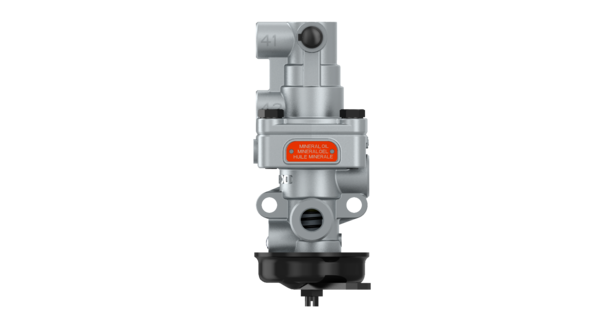

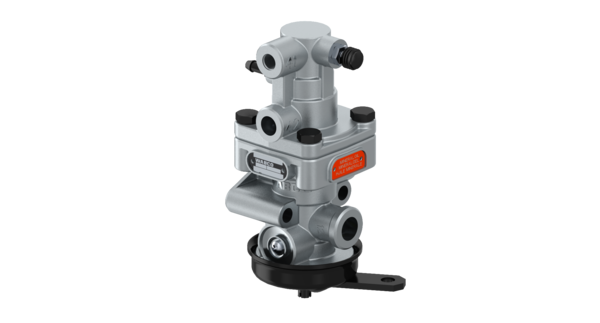

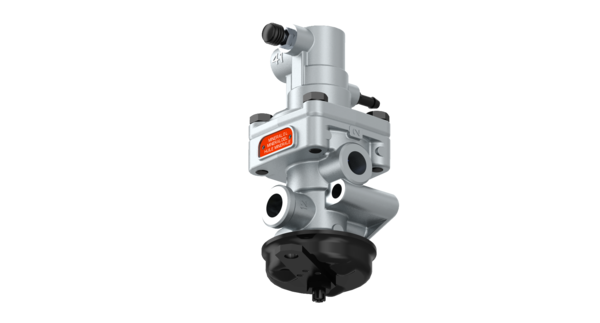

Trailer Control Valve
Part Number: 4700152650
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.0173 |
| Delivered pressure | 11.0 bar |
| Distance between holes | 26 mm |
| Exhaust | Flap |
| Max. operating pressure | 7.0/50.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø9.0 mm |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 41 | M10 x 1 |
| Port thread 42 | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | 2 Circuit |
| GTIN | 04057875216766 |
| Size (mm x mm x mm) | 170 x 88 x 68 |
| UPC | 193133309871 |
| Weight (kg) | 0.944 |
| Weight (lb) | 2.08 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 820163410 |
