Description

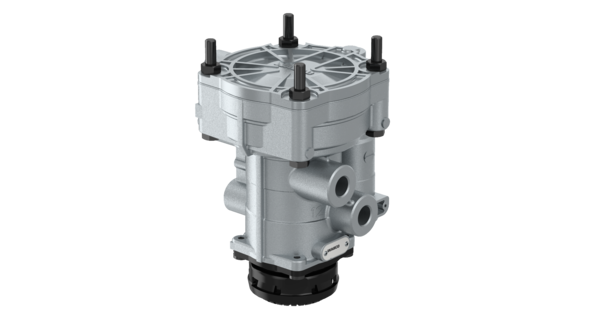

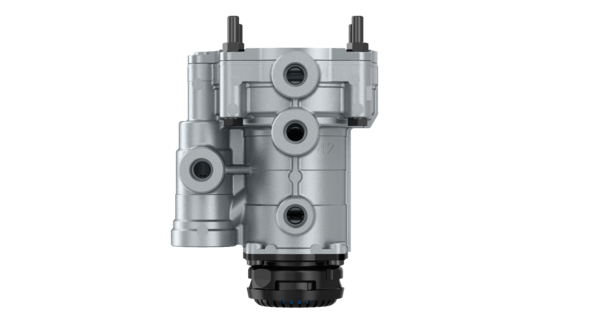

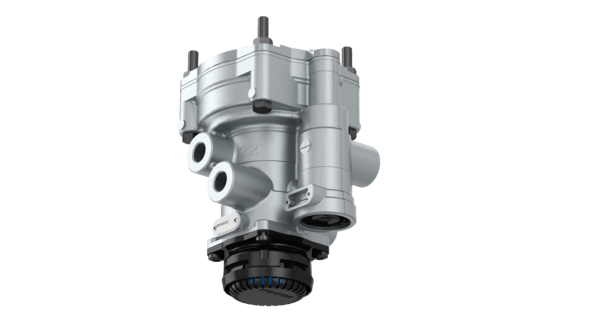

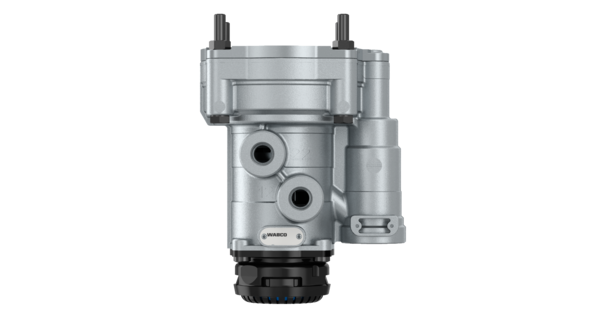

Trailer Control Valve
Part Number: 9730090100
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.038 |
| Distance between bolts | 85×85 mm |
| Exhaust | Silencer |
| Max. operating pressure | 8.5 bar |
| Mounting | 4x M8 |
| Multi nominal diameter (from port 1 to x) | 9 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 41 | M16 x 1.5 |
| Port thread 42 | M16 x 1.5 |
| Port thread 43 | M16 x 1.5 |
| Predominance | 0.40 bar |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851023567 |
| Size (mm x mm x mm) | 209 x 139 x 139 |
| UPC | 193133450108 |
| Weight (kg) | 2.164 |
| Weight (lb) | 4.7708 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | G931882020020 |
| AGRALE | 6009005138008 |
| DAF | 1504970 |
| FREIGHTLINER | TDAS9730090100 |
| KENWORTH | S9730090100 |
| MACK | 6300-9730090100 |
| MAFI | 0005661007 |
| MERITOR | S9730090100 |
| PACCAR | 1504970 |
| PETERBILT | S9730090100 |
| SCANIA | 1350096 |
| VDL | 20252296 |
| VDL | 252296 |
| VOLVO | 20424432 |
| VOLVO | WAB9730090100 |
